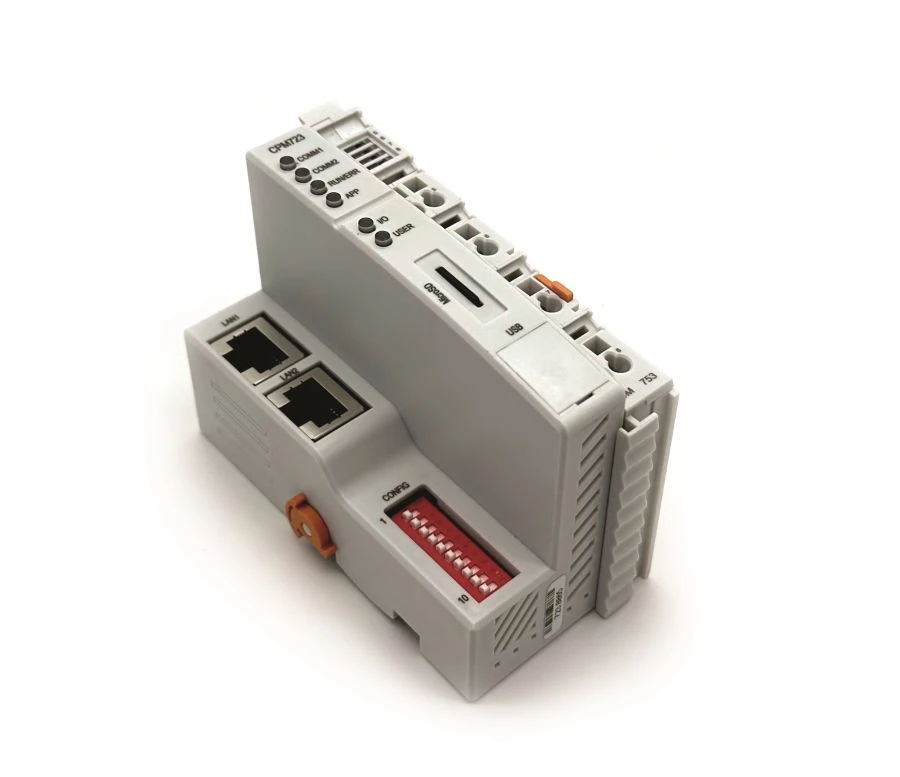

Programmable Controller CPM723-01-C1 for Industrial Automation Applications

Advanced Computing Devices

Manufacturer:DOLOMANT OJSC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The CPM723 programmable controller is designed for use in programmable logic controllers with variable FASTWEL I/O modules as a CPU module. It contains an integrated IEC 61131-3 IDE application execution system adapted for Fastwel controllers. The two Ethernet ports in the controller can operate in two modes: switched (Switch and Ring submodes) and non-switched (One Subnet and DSA submodes). Protocols OPC UA (server), Modbus TCP (client and server), FTP, HTTP, NTP (client and server), IEEE 1588 and GOST R IEC 60870-5-104 (master and slave nodes) are supported through the ports.

Specifications

Network interface

10/100BASE-T Ethernet (2 ports)

Data transmission medium

Twisted pair UTP 100 category 5

Network segment cable length, m, max.

100

Data transmission rate, mbps

10 ? 100

Transmission protocols

Modbus TCP (client/server), GOST R IEC 60870-5-104

Modbus TCP server service: number of independent instances

Modbus TCP server service: number of simultaneous client connections

Number of independent Modbus RTU master/slave service instances

16/16

Supported Modbus request types in server and client modes

01, 02, 03, 04, 05, 06, 0Fh, 10h, 17h

Available NAND Flash disc drive space, Mbytes, not less

528

Number of peripheral modules on the local FBUS bus, max.

Number of peripheral modules on remote FBUS, max.

128

Disc drive space available, Mbytes, not less

240

MicroSD card slot

Yes (1GB card installed)

Supported microSD card capacity, GB, max.

Ability to insert/remove microSD card without switching off the power supply

Armoured glass

Supply voltage, V, DC

16...30

Consumption current at 24 V DC voltage, mA, not more

Load current of the built-in power supply of FBUS devices, A, not exceeding

1,7

Non-volatile memory, bytes

131056

Real Time Clock

Built-in, standard for x86 systems

Average time between failures, hrs

500000

Weight, g, not more

250

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
