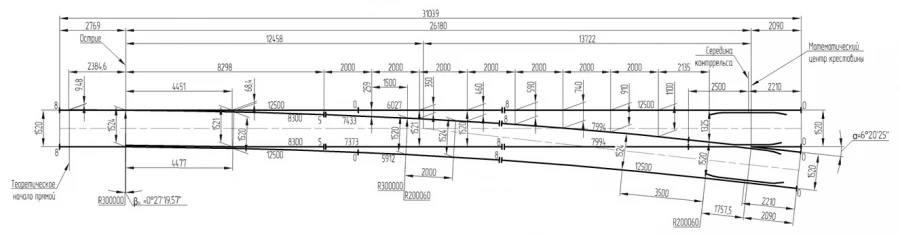

R65 Type Switch for Concrete Beams Project 2215.00.000-05 Available for Import

R65 Type Switch for Efficient Track Switching on Concrete Beams

Wide Gauge Track Switches
Manufacturer: NSZ OJSC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Available Models

Switching of arrow type P65 type 1/9 on reinforced concrete bars of the project 2215.00.000-04

Description

Designed for transfer of rolling stock from one track to another. Design features: switches: rotary shank with liner-overlay root fastening; pads with pads on riveted connection; crossbars: prefabricated crossbar with rail usoviki and cast core of high-manganese steel with liner-overlay end of rear outreach.

Specifications

Cross type by angle
Spicy
View
Single
Type of single transfer
Ordinary
Arrow design
With rotating sharps
Cross brand
1/9
Rail type
?65
View in the direction of a side or crossing track
Left
Cross type by construction
Team
Type of product according to PP RF 616
Track equipment and devices and their parts
Type of timber
Reinforced concrete
Save Your Time

Share your requirements for a quick response!

Instant response in 15 minutes
Best wholesale prices guaranteed
Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
