R65 Type Switch Mark 1/11 for Railway Tracks

Available for Import

R65 Type Switch Mark 1/11 for Efficient Railway Track Installation

Wide Gauge Track Switches

Manufacturer: MSZ OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The track crossing of type R65 grade 1/11 on reinforced concrete bars is designed for laying on railway tracks. The arrow has a reinforced design of the root unit. The crossbar is prefabricated with improved mating of the cast and rail parts.

The counter rail is not connected to the track rail. All pads have high flanges. The shackles and frame rails are HFI hardened.

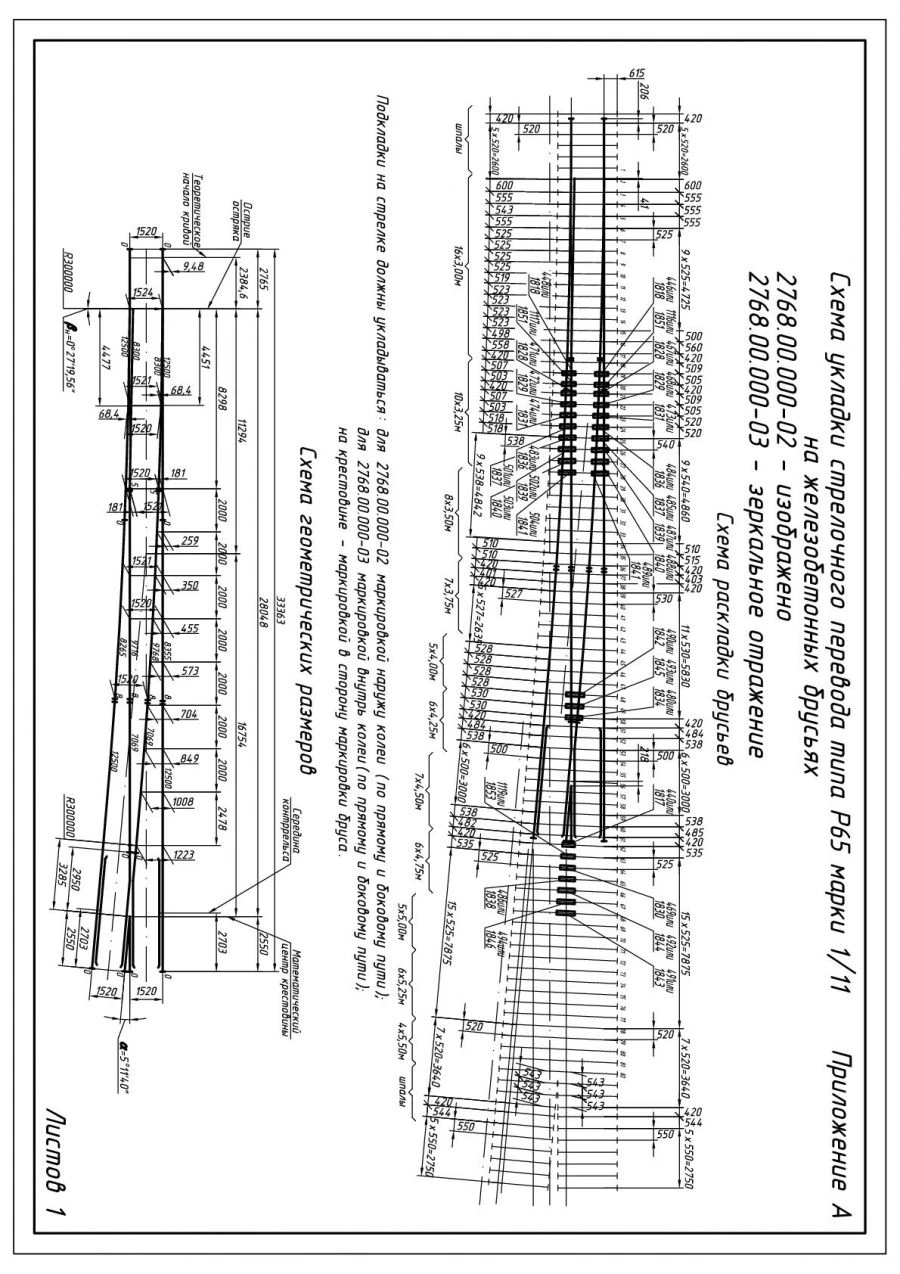

On customer's request it is equipped with PK type terminals or elastic spring terminals of Skl 12-32 type. The R65 type 1/11 grade 1/11 1520 mm track gauge R65 type switches project 2768.00.000-(02/03) are manufactured in the following versions: 2768.00.000-02 - right-handed; 2768.00.000.000-03 - left.

Specifications

Cross type by angle

Spicy

View

Single

Type of single transfer

Ordinary

Arrow design

With rotating sharps

Cross brand

1/11

Rail type

?65

Cross type by construction

Team

View in the direction of a side or crossing track

Left

Type of product according to PP RF 616

Broad gauge switches

Type of timber

Reinforced concrete
