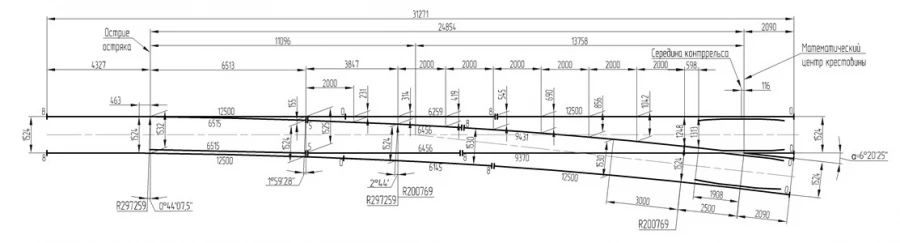

R65 Type Switch Translation for Coal Mine Access Paths
Manufacturer:
NSZ OJSC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Available Models
Description
Designed for operation on access roads of coal mines, mines. Design features: translations: screw and terminal fastening; on SC pads with counter-rail protector; switches: rotary shackle with liner and pad root fastening; adjustable link; pads with pads on riveted connection; crosses: one-piece cast of high manganese steel with liner ends of front and rear outreach on pads and bridge
Specifications
Cross type by angle
Spicy
View
Single
Type of single transfer
Ordinary
Arrow design
With rotating sharps
Cross brand
1/9
Rail type
?65
View in the direction of a side or crossing track
Left
Cross type by construction
Team
Type of product according to PP RF 616
Track equipment and devices and their parts
Type of timber
wooden
