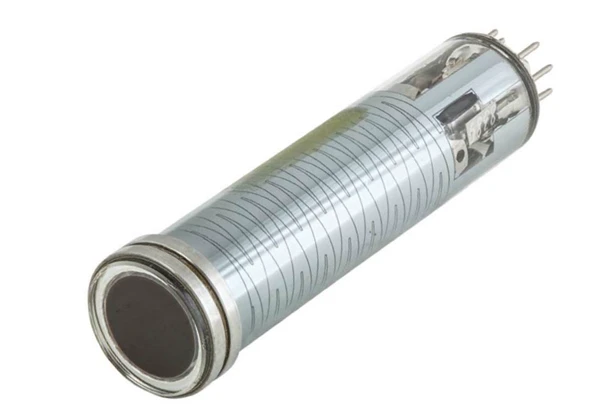

Radiation-Resistant Vidicon LI501-1MK for Specialized Camera Applications
Manufacturer:
Electron OJSC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
television cameras for special purposes in conditions of increased radiation up to 5-107 Rad
Specifications
Weight
0.018 kg
Filament voltage
6.3 V
Filament current
80...115 A
Target working surface size
6.6.?8.8 mm
Length
Flat grinder, Specialised grinder mm
Diameter
17.8 mm
Diameter of contact rings
19.6 mm
Anode voltage
250 V
Ready time
30
Warranty runtime
1000
Unevenness of dark background
15 %
Geometrical distortions
2.5 %
Maximum illuminance of the target, lx
4
Exposure dose rate, Rad/h
100000
Capacitance between the signal plate and other electrodes connected together, pF
3.5
Inertia of signal current decay 40 ms after lights out
14 %
Modulation depth at 400 TVL in the centre
55 %
Angle resolution, TVL
550
Resolution in centre, TVL
600
Voltage at deflectron electrodes, DC
220 V
Voltage on the grid
340 V
Voltage on the signal plate
10...25 V
Modulator operating voltage
0...15 V
Modulator voltage, locking (negative)
20 V
Nominal target illuminance, lx
1
Signal current, µA
0.15
Dark current, µA
0.003
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
