Regulating Ball Valve 682/692 for Efficient Flow Control in Systems

Regulating ball valves TEMPER are designed to regulate (balance) the flow of working medium in heating, cooling and ventilation systems. The ball has a special cross-section and the valve is equipped with a scale with values. Regulation is performed by turning the handle with a pointer. The selected handle position is secured with a bolt and butterfly nut.

Two designs:

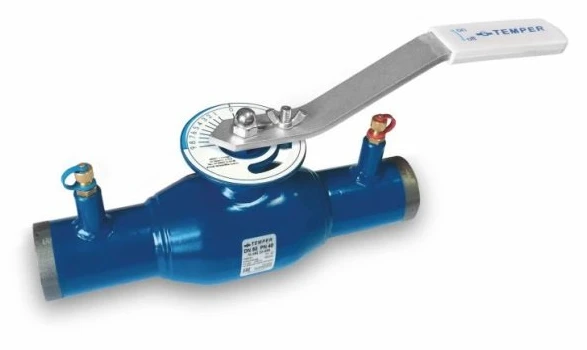

1)With measuring nipples (see figure below).Flow and differential pressure in the system can be measured by means of a flow meter.

2)Without measuring nipples. The flow rate is adjusted only by means of a handle with a pointer.
