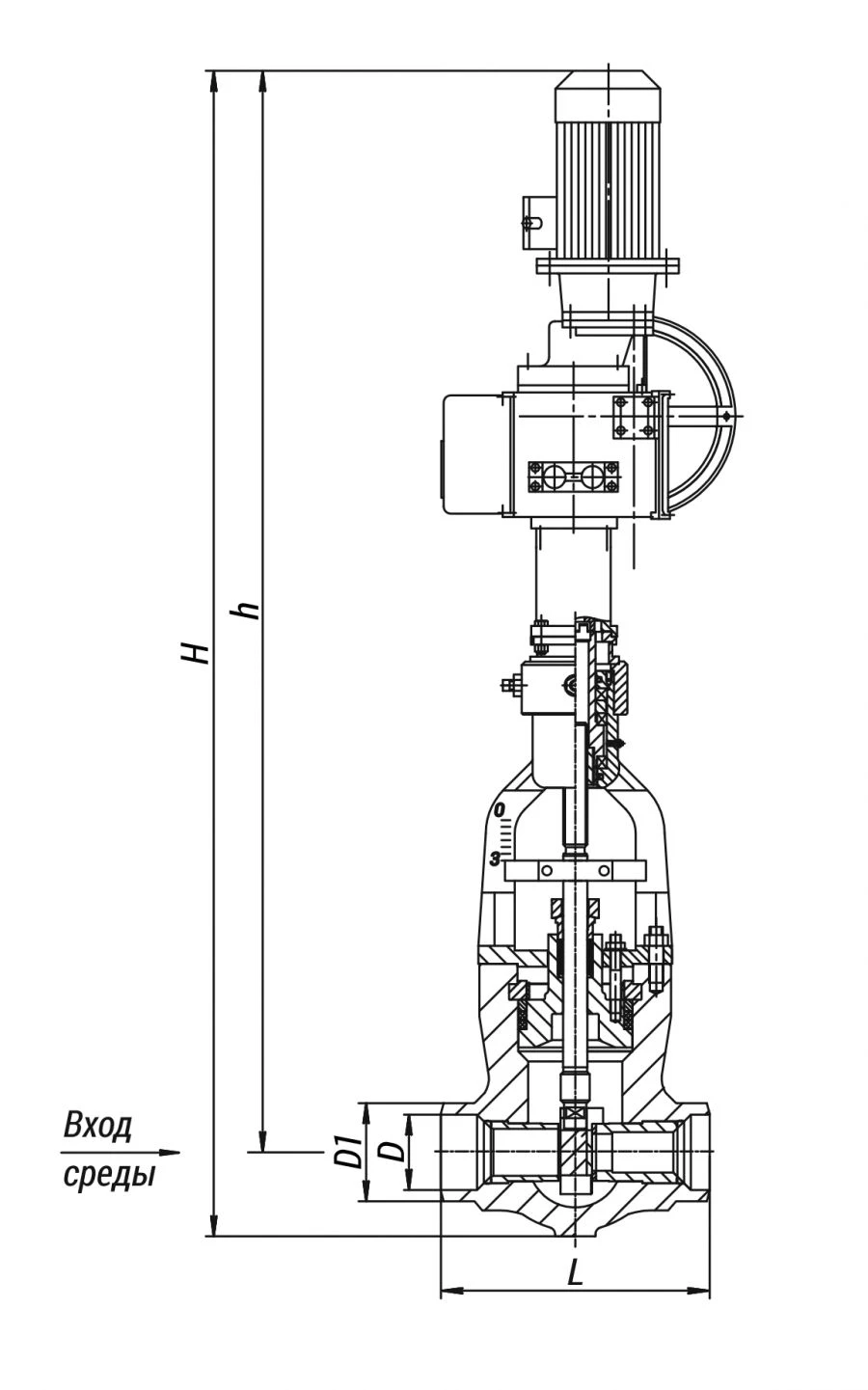

Regulating Valve for Thermal Power Systems: Model 1085-100-Э-01

Regulating Equipment

Manufacturer: BKZ LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

1085-100-ECh-01 Control valve 1084-100-EaCh Control valve 1087-100-E Control valve 1084-100-Ea-01 Control valve 1084-100-Ea-02 Control valve

1084-100-Ea-03 Control valve 1085-100-E Control valve 1086-100-E-02 Control valve 10s-8-3E Control valve 1086-100-ECH-01 Control valve 1087-100-ECh-02 Control valve 1087-100-Ech Control valve 1086-100-Ech Control valve 1087-100-E-01 Control valve 1087-100-ECh-01 Control valve 1087-100-E-02 Control valve 1084-100-EACH-03 Control valve 1086-100-E-01 Control valve 1085-100-ECh Control valve 1084-100-Ea Control valve 1086-100-ECh-02 Control valve 1084-100-EACH-02 Control valve 1086-100-E Control valve 1084-100-EaCh-01 Control valve

Description

Gate-type regulating valves are used in heat and power engineering facilities to regulate the flow rate or pressure of the working medium. Regulation is carried out by changing the area of the passage cross-section, which is achieved by progressive movement of the flap in the form of a gate valve. Installation position: on horizontal and vertical pipeline sections with medium direction from top to bottom.

Connection to pipeline: under welding. Climatic design: ?, ???, ??,? according to GOST 15150-69.

Placement category: 2, 3 according to GOST 15150-69. Control is performed by multi-turn built-in electric actuators with current position sensor. The maximum pressure drop across the valve is limited.

Specifications

Material

Steel 15?1?1F

Operating medium

vapor

Weight

239 kg

Diameter

100 mm

Pressure

9.8 MPa

Control method

Electric actuator 792-ER-0aI mm
