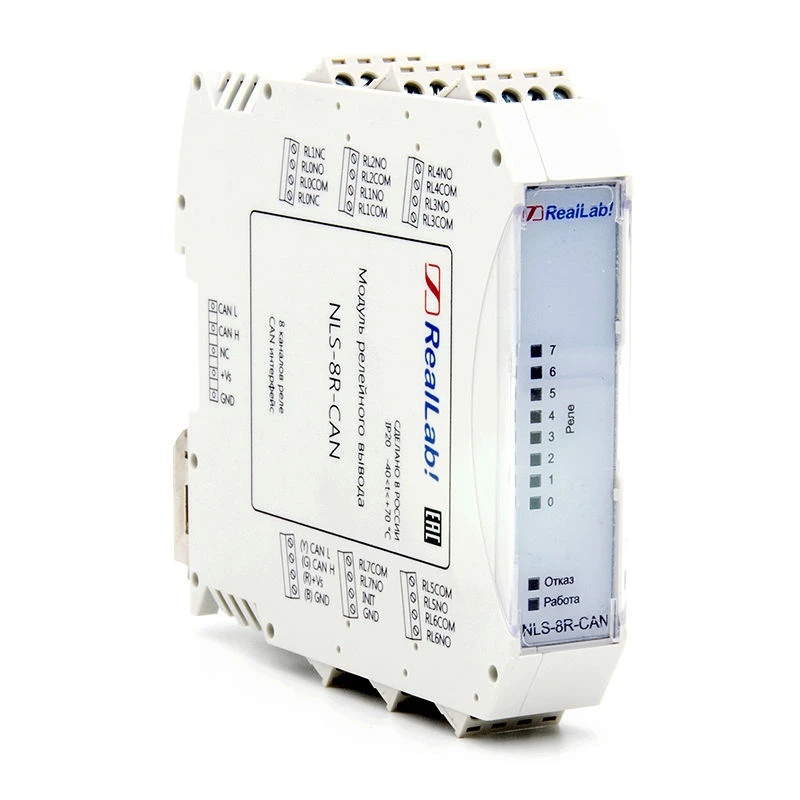

Relay Output Module NLS-8R-CAN for Efficient Signal Control

Purpose: output signals from relaysConnection: 8 relays 2A =30V or 0,25A ~220V per relay contact.To each terminal of the module is connected 2 relay contacts (contacts are connected in parallel), i.e. the actual current of the module terminal is approximately equal to 4A at 30V or 0,5A at 220V.6 relays with normally open contacts and 2 with switching contactsProtection: protection via CAN interface and power supplyTemperature: operating temperature range from -40 to +70 SIInterface connection: CAN interfaceProtocols: CANopenPower supply: 10 to 30VPower consumption: not more than 0.3 / 1.3W (with relays off / on)Design: slot design, bus connector for CAN interface and power supplyFixing: din-rail mounting ????2 code: 26.51.43.117Dimensions (H x W x D): 109x22,5x113 mmWarranty: 18 months.
