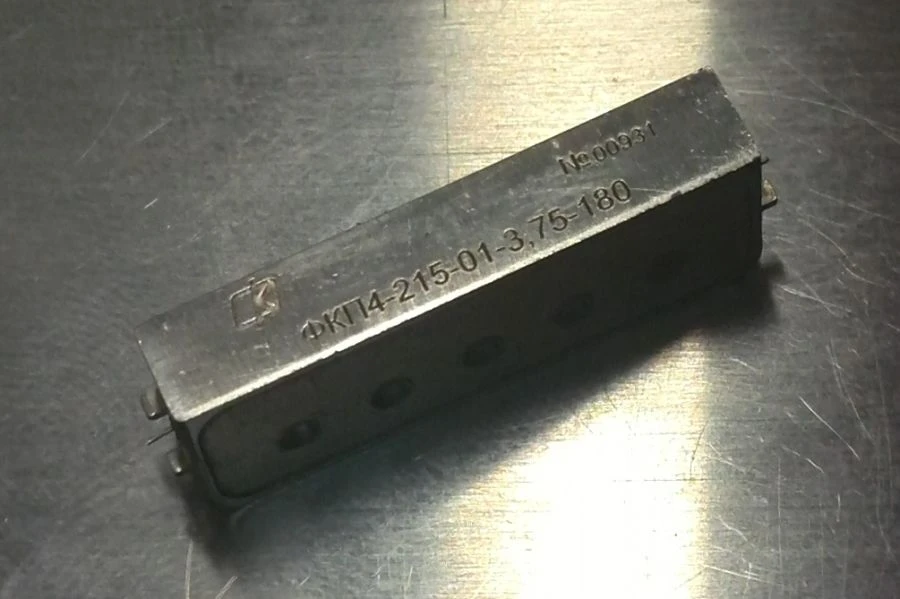

RF Bandpass Filter FKP4-215-01-3.75-180 for High Reliability Applications

Telecom Equipment Accessories

Manufacturer: FLIX LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The band-pass filter of the 5th order is made on the basis of a ceramic monoblock inside the case - screen, which provides a low level of losses, high reliability and goodness at simultaneous minimisation of mass-dimensional parameters of the product. The filter is designed for operation in the UHF range and provides a bandwidth of 180 MHz relative to the centre frequency of 3750 MHz.

Specifications

Maximum input and output VSWR in the frequency band 3660 to 3830 MHz

1.4

Guaranteed attenuation (upper band 3400 to 3465 MHz)

Guaranteed attenuation (lower band 10 to 3400 MHz)

Maximum insertion attenuation at center frequency

1.4

30 dB level bandwidth

365...395

Bandwidth at 1 dB level

175...192

Center frequency

3749
