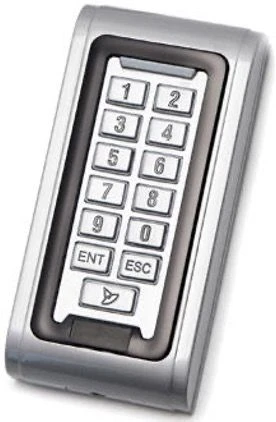

RFID Reader 125 kHz for Access Control Systems, Model: Matrix-IV (E HT Metal Keys)

Available for Import

RFID Reader 125 kHz for Access Control Systems - Matrix-IV

Electrical Interface Devices

Manufacturer: OTK LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The reader is designed to read serial numbers of identifiers (proximity cards, key fobs) of EM-Marine, HID ProxCardII (HID 1326) and Atmel 5557 (Temic) standards in access control and management systems (ACS). The read code is transmitted to the controller via iButton (Dallas Touch Memory) or Wiegand 26(42) protocols. The reader supports simultaneous operation with EM-Marine and Temic cards (installed factory firmware) or HID ProxCardII and Temic (special firmware). The reader provides the ability to pass both with an identifier and without an identifier by dialling a code on the keypad.

Specifications

Operating frequency

125

Type of identifiers used

EM-Marine, HID ProxCard II and Atmel 5557(Temic)

Defining the card standard

Automatic, without additional settings

Reading range

EM-Marin, Atmel 5557(Temic) - 5 cm HID ProxCard II - 3 cm

Output interface

Ibutton (Dallas Touch Memory), Wiegand-26(42)

Maximum line length from reader to controller: Dallas Touch Memory

No more than 15 m

Maximum line length from reader to controller: Wiegand

Not more than 100 m

Light and sound indication

Got it

External control of LED and sound

Got it

DC supply voltage

B1/B8 2100/900 MHz V

Maximum current consumption

150 mA

Maximum load current of bell output

1,3 ?

Dimensions

120x58x20 mm

Housing material

Silumin, plastic

Operating temperature

-40...50 °C

Weight

500 year

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
