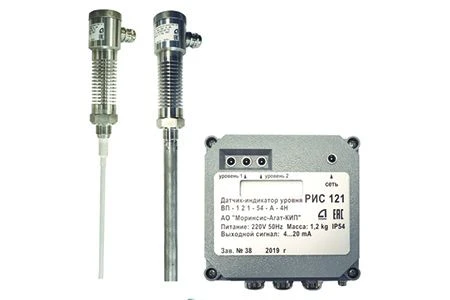

RIS 121 Level Sensor Indicator for Continuous Monitoring of Liquids and Solids

Level Measurement Instruments

Manufacturer:MORINSIS-AGAT-KIP OJSC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The level indicator sensors RIS 121 are designed for continuous level control of liquid and solid (bulk) media, as well as signalling of reaching the limit levels of the controlled medium in two specified points. Level indicators RIS 121 meet the requirements of the Rules of the Russian Maritime Register of Shipping and the Russian River Register, have a version for application at nuclear power facilities. Level indicators RIS 121 belong to the type of capacitive devices. Versions of sensitive elements of the primary transducer:

- plate non-insulated;
rod (with and without insulation);
cylindrical (with and without insulation);
cable (with and without insulation);
cable insulated;

Type of explosion protection:

- primary transmitter: "0 Ex ia IIC T6";
secondary converter: [Ex ia] IIC;

Degree of protection of the enclosure:

- primary transmitter: IP67;
secondary converter: IP54, IP67

Specifications

Power supply voltage

24 V

Service life

B1/B8 2100/900 MHz year

Degree of protection of the outer shell

54;67

Induced error of level measurement by primary transmitter

1,5 %

Deviation of actuation level from nominal value

No more than 5 mm

Length of the immersed part of the sensing element

0.5-3.5 (rigid PE design); 3-10 (cable PE design); 1-22 (cable PE design) m

Operating temperature range of the controlled medium

-100...200 °C

Operating pressure of the controlled medium

no more than 2.5 MPa

Ambient temperature

-20...70 °C

Output signal of primary converter

4-20 mA (DC) A

Output signal of secondary transducer

4-20 mA (DC); 0-1V; relay output signal; digital RS-485 A

Power supply parameters

24 (DC voltage); 220 (AC voltage at 50; 60; 400 Hz) V

Power consumed by the primary converter

0,7 W

Power consumed by the secondary converter

2,5 W

Communication line length

Up to 300 (for explosion-proof version); up to 1000 (for non-explosion-proof version) m

Assigned service life

B1/B8 2100/900 MHz year

Model

RICE 121

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
