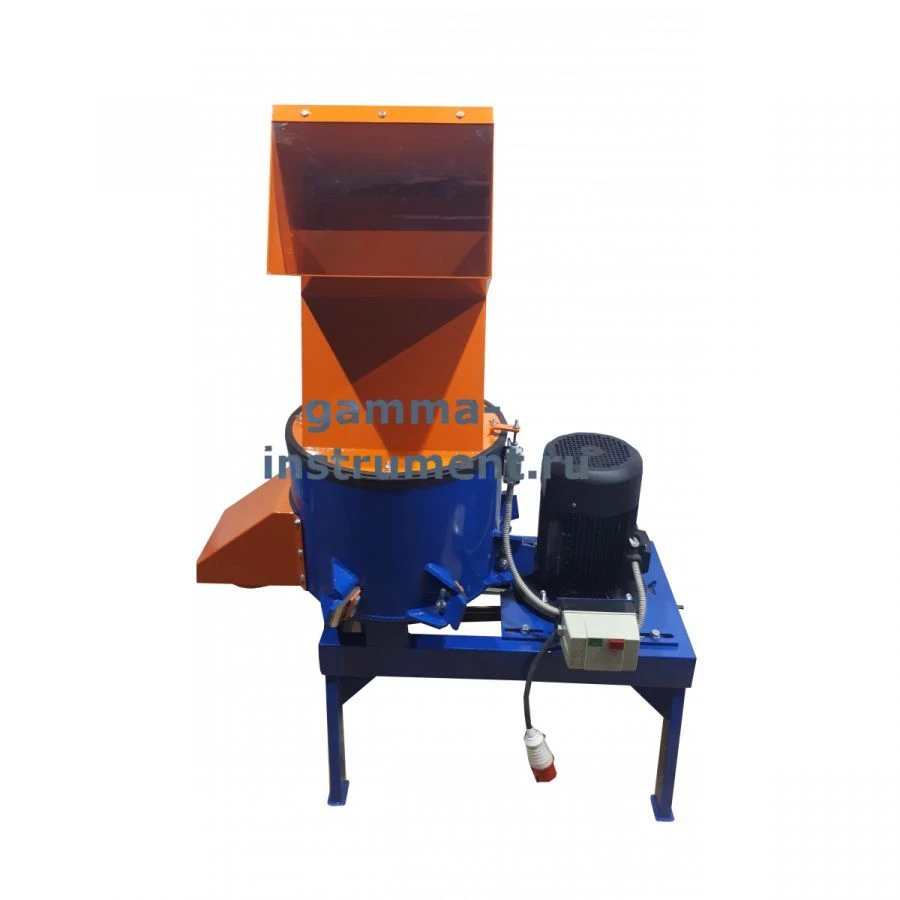

Rotary Mechanical Shredder MI 600-PL-380-12-UHL4

Available for Import

Rotary Mechanical Shredder MI 600-PL for Effective Material Size Reduction

Special Purpose Equipment

Manufacturer: GAMMA-INSTRUMENT LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Rotor mechanical shredders (crushers), model series MI, MIG - crushing equipment for primary and subsequent size reduction of a wide range of materials (plastic products with a wall thickness not more than 4 mm, foam, foam rubber, foam rubber, syntepon, expanded polystyrene, polymer films, polypropylene bags and waste). The crushers are equipped with high-speed rotating knives, effectively crushing the material to flakes and shavings. They are intended for crushing of materials, production waste (for the purpose of reuse of raw materials - recycling), at small and medium-sized enterprises, as well as for use in various sectors of national economy and exports.

Specifications

Voltage

380 V

Weight, not more

208 kg

Service life, at least

5 year

Drive type

Belt

Rotor dimensions

470 mm

Receiving opening dimensions (L x W), mm

400x280

Working chamber diameter

530 mm

Number of knives, rotary/stationary, pcs.

2/6

Crusher capacity, kg/h

up to 110

Size of maximum piece of material to be loaded, mm

For plastic products, the wall thickness must not exceed 4 mm

Output fraction size

6...40 mm

Nominal rotor speed

1500

Circumferential speed of rotating rotor blades

Adjustable width of exit slits

0.5...5 mm

Installed power nominal

11 kW

Overall dimensions (L x W x H), mm

1200x700x1600

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
