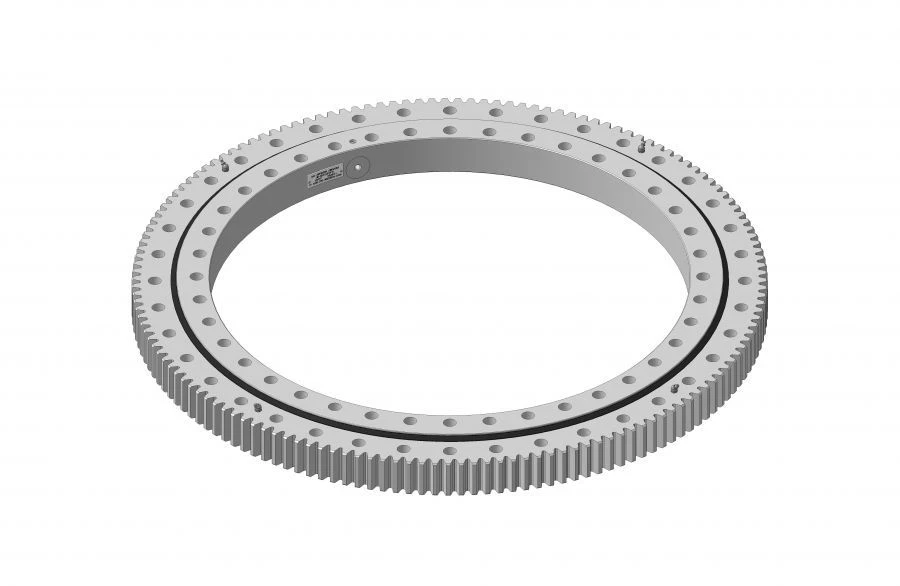

Rotating Support for Smooth Rotation, Model OP-1451.2.1.8.3.P U1

Rotating Support OP-1451.2.1.8.3.P U1 for Smooth and Efficient Rotation

Manufacturer:IMZ AUTOCRANE LLC
Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

Support rotary OP-1451.2.1.8.3.R U1 is designed for use as a unit providing rotation of the rotary part of the product relative to the non-rotary part with a frequency of not more than 16 rpm and transfer of loads (load moment, axial and radial forces). Type of construction - roller/ball; Type of meshing - external; Gearing modulus - 8 mm; Material of rings - Steel 55 GOST 1050-88 (normalisation); Weight - 382 kg.

Specifications

Assignment
Ensuring rotation of the rotating part of the product with respect to the non-rotating part
Type
ball, roller
Designation
Swivelling support OP-1451.2.1.8.3.P U1
