Available for Import

RS-485 Digital Serial Channel Interface Device MIRage-N485 for Industrial Connectivity

Data Processing Devices

Manufacturer: Tornado Modular Systems LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

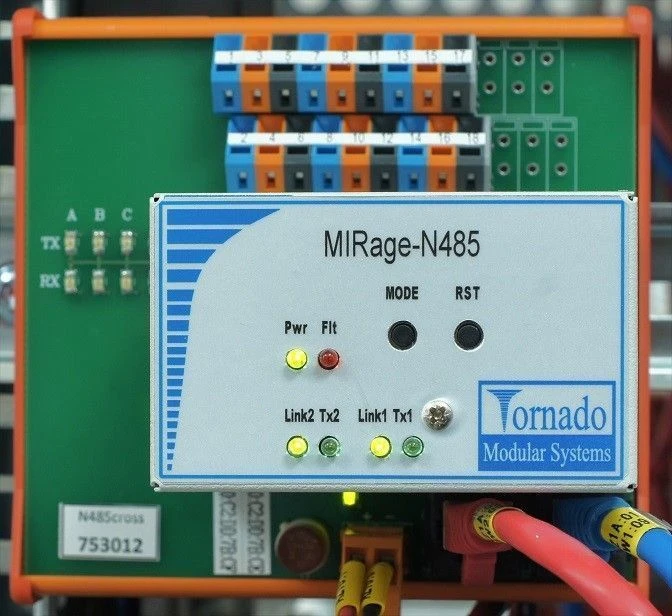

The MIRage-N485 devices are designed to connect industrial devices and instruments with RS-485 interface to Ethernet networks. The device has two redundant Ethernet 10/100 interfaces with twisted pair connection and three channels of RS-485 interface. The devices operate in two modes: transparent (RAW) mode and ModBus packet transmission mode.

The speed and format of serial data transmission via RS-485 is configurable by software. Each channel has galvanic isolation and short-circuit protection. MIRage-N485 devices are designed to create automated process control systems (APCS) in various industries.

MIRage-N485 devices use the central processor K1986BE92QI, manufactured in the Russian Federation.

Specifications

Base frequency of the processor

0.1

Architecture

autonomous distributed I/O with redundant ethernet communication

External connectors

2 RJ-45; +24V power supply; spring terminals for signal cable

Form factor

din-35 rail mount

Power Type

+24V DC

Consumption current, mA

Data transfer rate

100

Channel type

rs-485 communication interface

Weight

450 year

Dimensions width

114 mm

Galvanic insulation

Individual

Power consumption

2 W

Data exchange protocol

Modbus UDP/TCP Slave

Polling time

Number of RS-485 communication interfaces

3 pcs

Height

108 mm

Number of processor cores

1 pcs

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
