Rust Removal Machine for Round Pipes SG2B-90 - Efficient Surface Cleaning

Metal Grinding Machines

Manufacturer: SK "HOKHMAN" LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

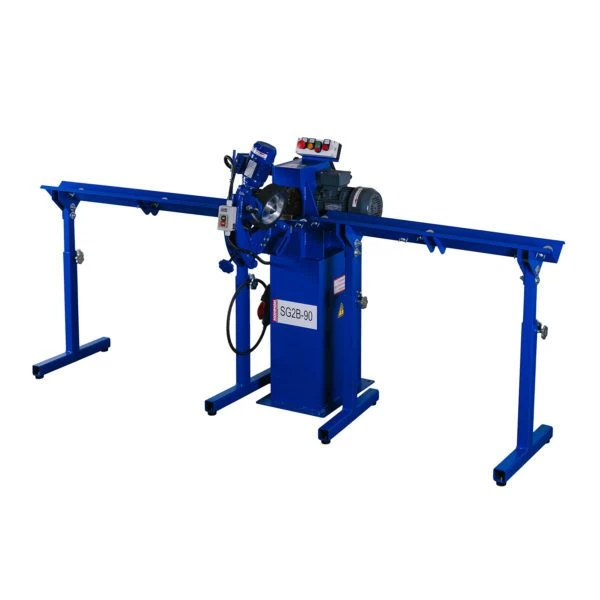

The SG2B-90 machine is designed to remove rust and scale from the outer surface of round pipes with diameter from 10 to 110 mm. The surface of pipes is cleaned with metal cord brushes. A set of 5 brushes provides a machining shaft width of 100 mm.

The maximum length of the workpiece is 6 metres. Maximum weight - 65 kg. Permissible deflection of the workpiece is 5 mm.

Depending on the selected technology, the machine provides cleaning degree SA-2 or SA-2-1/2 according to GOST 9.402-80 (ISO 8501-1). The number of passes may vary depending on the initial contamination of the workpiece and the desired result. The machine bed is made of 10 mm thick sheet steel, the cladding is made of 3 and 1.5 mm sheet steel, which ensures reliability and stability of the machine during operation.

A powerful electric motor of 3 kW is installed on the machine. It is possible to connect an aspiration unit - the diameter of the branch pipe is 120 mm. The recommended capacity of the aspiration unit is 1600 m3/h.

Specifications

Machine type

Stripper

Power

3.1 kW

Type of product according to PP RF 616

Grinding, polishing, finishing machines

Height

1200 mm

Width

2600 mm

Length

860 mm

Drive power of the working tool

3 kW

Number of workpiece feed drives

1 pcs

Diameter of the workpiece to be machined

10...110 mm

Minimum workpiece length

250 mm

Maximum workpiece weight

65 kg

Maximum workpiece length (when using compensation trays)

2000 mm

Dust extraction connection diameter

120 mm

Total number of cord brushes

5 pcs

Machine weight

120 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
