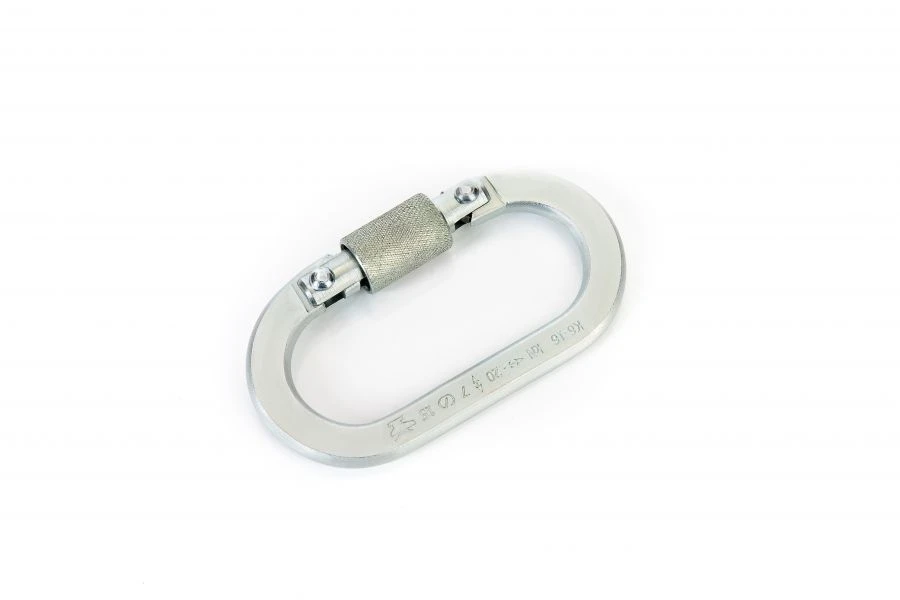

Safety Fall Protection Connectors for Height Safety Applications

The connection element with self-closing screw locking element is a basic connection element of class B, which is a self-closing device with a screw locking element and is designed for connecting individual components in fall arrest, working positioning, rope access and restraint and rescue systems.
Opening value of the locking element "a" -16+1 mm
Static load with closed and locked locking element
Static load with closed and fixed locking element in the main axis -20 kN
Static load with closed and not fixed locking element on the main axis -20 kN
Static load with closed and not fixed locking element along the main axis -15 kN
Static load with closed locking element on minor axis - 7 kN
