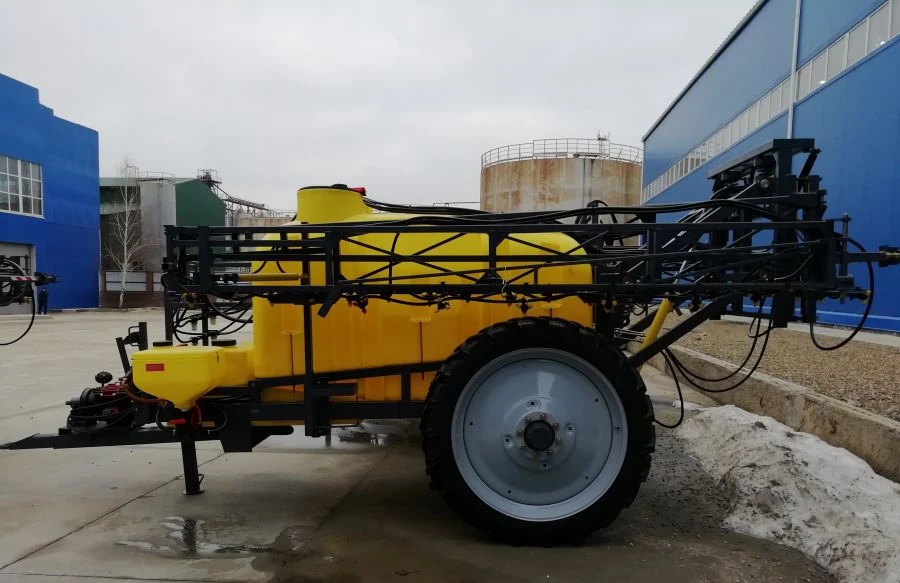

Semi-Trailer Sprayer OPSH-24-3000 for Surface Application of Fertilizers

OPSH series sprayers are designed for surface application of working solutions and liquid mineral fertilisers with microelements additives. Depending on the model, the sprayers are equipped with diaphragm-piston pumps with a maximum production capacity of 185l/min, tanks with a capacity of 3000l; wheels of large diameters. The width of the treated surface is 24m.

Productivity for 1 hour of basic time from 14,2 ha/hour to 28,6 ha/hour. Productivity for 1 hour of operational time from 9.3 ha/hour to 22.6 ha/hour. Working speed of movement on the main operations 6-12 km/hour.

Transport speed (with empty tanks) 16 km/hour. Agrotechnical clearance - 500 mm. The sprayer is aggregated with MTZ-80/82 and other tractors of traction class 0,8-1,4 kN.
