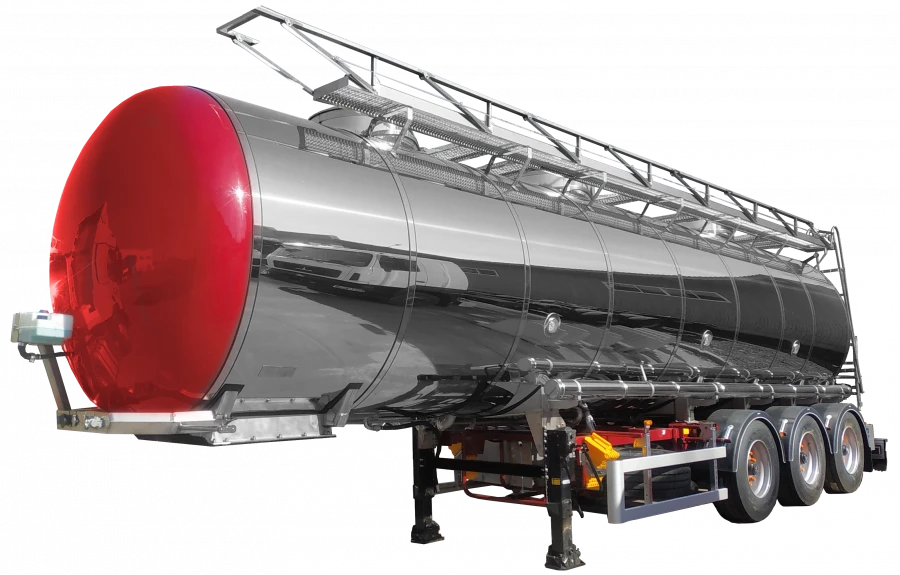

Semi-Trailer Tank with Chassis Structure Model YADISH-VM-PPC 912851

Available for Import

Semi-Trailer Tank YADISH-VM-PPC 912851 for Transporting Up to 30,000 Liters

Liquid Transport Trailers

Manufacturer: VOLOGODSKIE MASHINY LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Model 912851 Volume up to 30,000 litres Chassis 3 axle undercarriage Number of sections, pcs 3 Tank section "circle" Tank material (outer skin, inner casing): stainless steel AISI 304 Drainage pipe diameter, mm drain manifold DN 80 Diameter of hatches and necks, mm DN 500 Bottom valves (control) DN 80, manually operated from the top of the tank. Thermal insulation: ISOVER SAUNA foil, provides product temperature change ±2 C for 10 hours at 30 C° difference between product and ambient air temperature. Service platforms: upper, on the right side of the tank made of cut-profiled decking with a handrail and ladder. Dimensions: length 9350 mm, width 2500 mm, height 3600 mm

Specifications

Type of product according to PP RF 616

Tank trailers and semi-trailers for transportation of oil products, water and other liquids

Equipment

Washing system, service platform, parking lights, brake signals

Wheel arrangement

3/6

Base machine type

undercarriage of support structure

Front track

1800...2250 mm

Rear track

1800...2250 mm

Tank length

9...16 m

Tank width

3 m

Tank height

3...4 m

Pump capacity in nominal mode, l/s

Climatic version

temperate climatic region

Tank material

stainless steel AISI 304

Assignment

for the carriage of edible liquids

Designation

YADISH-VM-PPC

Payload

30000 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
