Available for Import

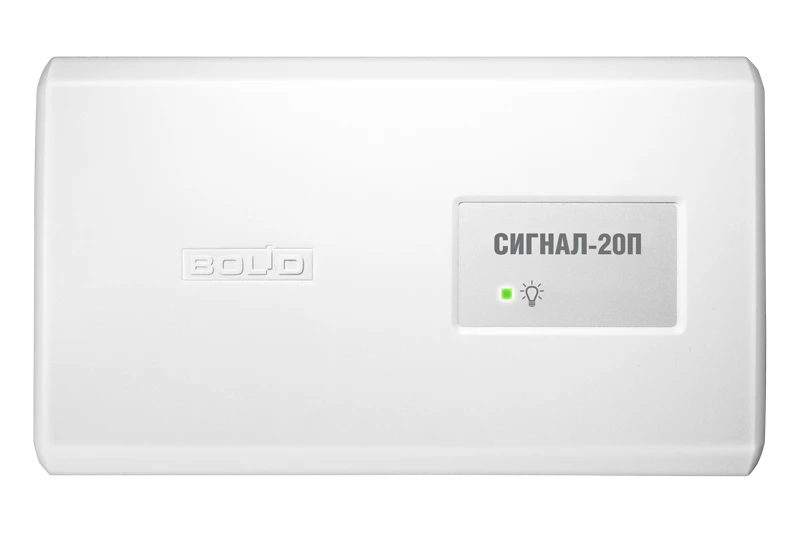

Signal-20P Security and Fire Alarm Control Panel for Reliable Monitoring
Manufacturer:
BOLID CJSC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Designed for joint use with a network controller (S2000M control panel or Sirius fire control and monitoring device, or a computer with Orion Pro ARM software installed) as a combined control and monitoring unit and control unit as part of complexes of technical means: intrusion and alarm signalling (together with S2000M console or Sirius fire alarm control panel or a computer with Orion Pro ARM software installed); fire alarm and automation systems (together with the S2000M console or Sirius fire alarm control panel); Type 1 and Type 2 notification and evacuation control systems (together with the S2000M console or Sirius fire alarm control panel). When operating under the control of the S2000M console, the unit provides connection of various fire-fighting equipment.
Specifications
Number of power inputs
2 pcs
DC supply voltage
10,2 to 28,0 mm
Consumption current without taking into account current of outputs (consumption of sirens), in standby mode
not more than 600 mA
Consumption current without taking into account current of outputs (consumption of sirens), in "Fire" mode
not more than 650 mA
Number of inputs for connecting alarm loops
20 pcs
Loop termination resistor resistance
4,7±5 % kOhm
Number of outputs, unsupervised, dry contact, switching (80VAC, 50mA / 24VDC, 2A)
3 pcs
Rated load current of the monitored output
5 to 2500 mA
Protection degree of the shell according to GOST 14254-2015
IP20
Operating temperature range
minus 30 to +55 °C
Overall dimensions of the device
230×135×37
Instrument weight
0.5 kg
Average lifetime of the device
10 year
Number of outputs, supervised (10.2 ... 28.0 V, 2.5 A)
2
Number of outputs, unsupervised, reader indicator control (5 V, 10 mA)
2
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
