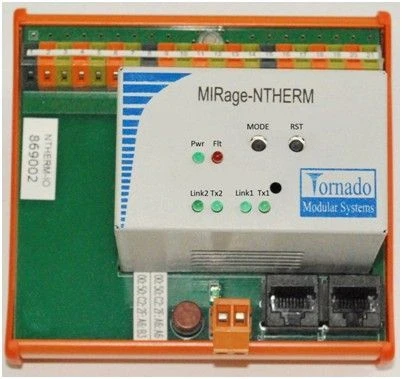

Signal Conversion Device for Thermocouples MIRage-NTHERM for Accurate Temperature Measurement

Data Processing Devices

Manufacturer: Tornado Modular Systems LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The MIRage-NTHERM devices are designed to measure temperatures using thermocouples (TP) and transmit the measured values via redundant digital interface Ethernet 10/100 over twisted pair using ModBus protocol. The MIRage-NTHERM devices have 8 measuring channels (IR). The interface of each IC assumes connection of TP types: ???

(L), ??? (K), as well as any other types according to GOST R 8.585-2001 with downloading of conversion tables on request. The device is equipped with an internal temperature meter of thermocouple terminals (cold junction) and a circuit for detection of TP connection circuit breakage.

The devices have one additional internal reference channel for internal automatic calibration. MIRage-NTHERM devices are designed to create automated process control systems (APCS) in various industries.

Specifications

Architecture

autonomous distributed I/O with redundant ethernet communication

External connectors

2 rj-45, +24v power supply, spring terminals for signal cable

Form factor

din-35 rail mount

Signal-to-noise ratio

Flat grinder, Specialised grinder

Power Type

+24 dc

Base frequency of the processor

0.1

Number of measuring channels

8 pcs

Polling time

Data exchange protocol

modbus udp/tcp slave

Power consumption

2.5 W

Galvanic insulation

Group

Dimensions width

114 mm

Weight

400 year

Type of measuring channels

сигналы термопреобразователей термопар

Height

108 mm

Data transfer rate

100

Number of processor cores

1 pcs

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
