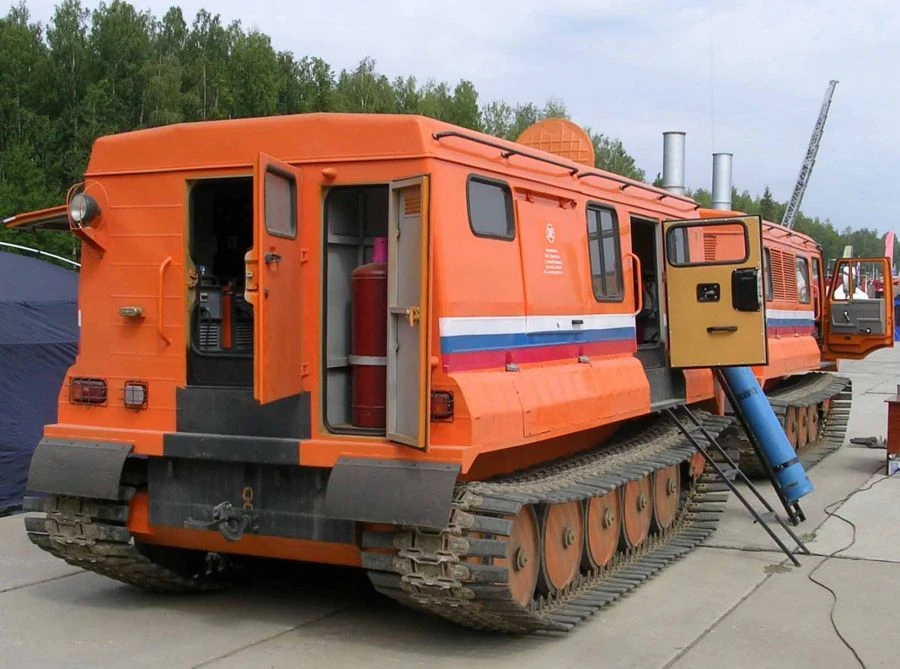

Snow and Swamp Crawler Vehicle TTM 4902TP for Off-Road Repairs

Snow Terrain Vehicles

Manufacturer: TRANSPORT LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Snowmobiler TTM 4902TP is a technical aid designed for repair and emergency recovery work on main pipelines and other facilities in off-road conditions, including snow virgin land (without limiting the depth of snow cover), loose sands and swamps of all types with overcoming small water obstacles afloat. The body of the second link of the machine consists of a working compartment and a rear compartment separated by a soundproof partition. The working compartment on the right side has a side entrance door, inside behind the front wall has a compartment for an oxygen cylinder.

The compartment is glazed on both sides. In the roof of the compartment there is a hatch for dismantling the GP, in the lid of which there is an emergency hatch. The rear compartment is designed for diesel-generator set and welding equipment.

There is a door in the rear wall and a partition with a door for propane cylinder. The compartment has side hatches on both sides. The roof of the compartment is removable.

Specifications

Type of product according to PP RF 616

Snowmobile means of transportation

Mark

TTM 4902TP

Fuel tank

760 l

Model

TTM 4902TP

Power

320 hp

Curb weight

15.44 t

Payload

0.5 t

Range (by fuel)

500

Ambient temperature

40...45 °C

Caterpillar

760 mm

Average specific pressure on the ground

0.02 MPa

Overall dimensions, length

11570 mm

Overall dimensions, width on tracks with extensions

2940 mm

Overall dimensions, height

2700 mm

Ground clearance

400 mm

Minimum turning radius

10 m

Maximum highway speed (on land)

Maximum afloat speed

Cab capacity

Maximum roll angle on dry sodden ground, degrees

Maximum slope angle when travelling on dry sodden ground with full load, deg.

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
