Soil Pressure Sensor (DDG) TSGE.001.010.000 for Construction Monitoring

Measurement and Control Devices

Manufacturer: SINTEZGEO LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

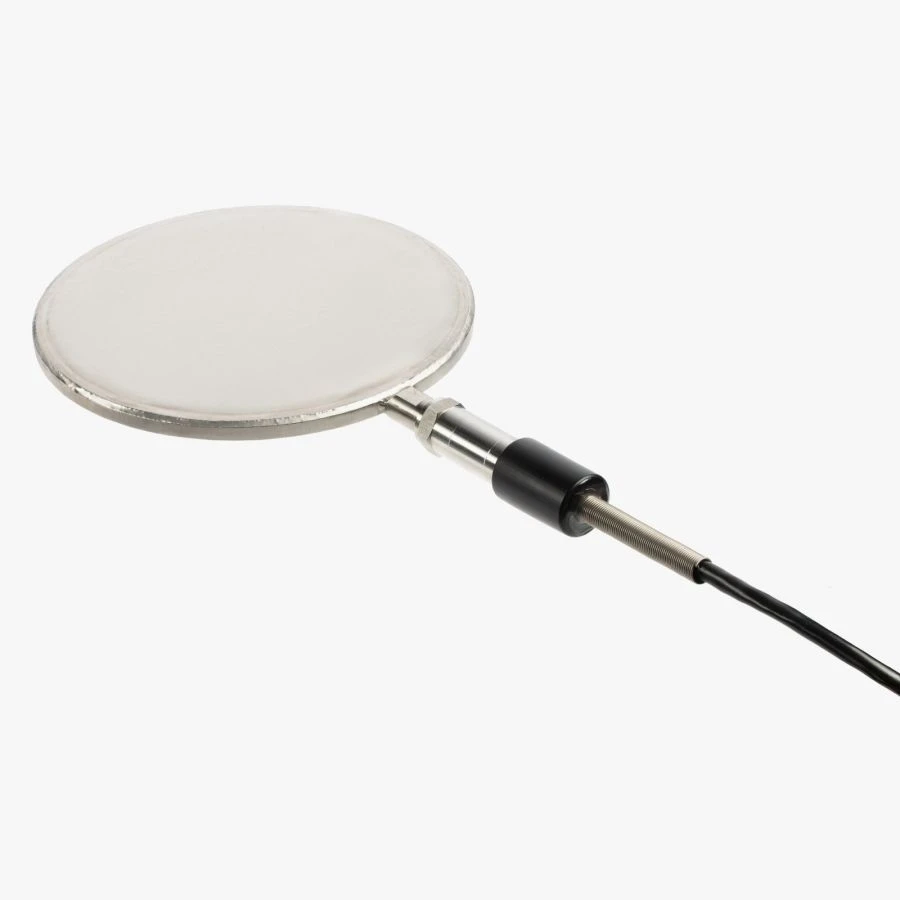

Ground pressure sensor (VMP-DG) is designed to measure the pressure occurring in soils under linear objects and building structures. It is used both for control during construction of the object and for long-term geotechnical monitoring, including remote monitoring. DDG is a metal disc with a cavity inside made of stainless steel 12 mm thick.

Inside it has a cavity filled with working fluid and an overpressure sensor. When loaded, the construction of the DDG is deformed, the working fluid is forced into the cavity of the overpressure sensor, which records the load values in real time. DDGs can be assembled in a daisy chain of up to 20 pieces and connected by a signal cable to a data logger, which processes the digital signal, sets the frequency of data reading from the DDG and sends it to the data acquisition server.

The range of DDGs includes several sizes with a force measuring range of 0.01 - 10 MPa. Modbus RTU; HART, RS 485 / IP68.

Specifications

Number of cores

4 pcs

Core diameter

0.9 mm

Diameter by insulation

2.1 mm

Braid density

Flat grinder, Specialised grinder %

Cable diameter

10.8 mm

Weight (with cable)

5 kg

Warranty period of operation

1 year

Service life

5 year

Permissible temperature range for transportation, storage and presence in the structure to be measured

-50...80 °C

Type of product according to PP RF 616

Other tools and instruments for measurement, inspection and testing

Measuring range

0...1 MPa

Limits of permissible reduced error of measurements

0.25...-0.25 %

Limits of permissible additional reduced error of measurement due to temperature influence

0,05 % / 10 degrees Celsius °C

Sensitivity

0.075

Minimum depth of installation

SBVVBG cm

Maximum setting depth

13 m

Vibration resistance

10...2000

Cable length

1000 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
