Solar Module Controller UG Sunlogic - 1500/300/12 for Efficient Solar Power Management

Electrical Measurement Systems

Manufacturer:BNK LLC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The controller "UG Sunlogic - 1500/300/12" is designed for use in solar power plants of various sizes. It measures in real time the main operating parameters of solar panel assemblies consisting of photovoltaic modules (PV modules): current, voltage and temperature. The controller allows quick identification of possible problems and equipment diagnostics.

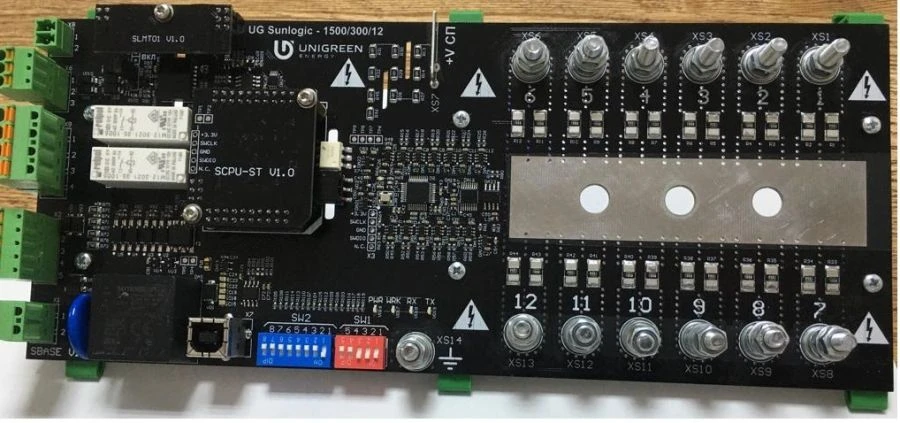

The controller "UG Sunlogic - 1500/300/12" consists of three main components: main board, processor module and temperature sensor module. The controller has an unencapsulated design and provides for mounting on a DIN-rail by means of plastic brackets. To connect external circuits, the controller includes such switching equipment as bolt terminals, knife terminals and connectors.

The controller has 12 DC current measurement channels of 25A each, 1 voltage measurement channel from 0 to 1700V, 230V 50Hz supply voltage, RS-485 communication interface via MODBUS RTU protocol (slave)..

Specifications

Number of DC measurement channels (circuits)

B1/B8 2100/900 MHz

Number of DC voltage measurement channels (circuits)

Supply Voltage 50 Hz

230 V

Power supply capacity

10 W

Operating temperature range

-40...70 °C

DC voltage range

0...1700

Overall dimensions (W×H×H)

258x108x50

Mode of operation

Round-the-clock

Measuring range of initial magnetic permeability

absent

Weight

Name

absent

Measurement of parameters of low-current single- and double-stable electromagnetic DC relays with up to 8 windings and up to 12

absent

Measurement of DC current and voltage signals in the control of static parameters of semiconductor devices on the wafer and in t

absent

Range of set and measured voltages

0...1700 V

Setting and measuring current range

-4...25 A

Availability of the option "Switchboard for thermal tests"

absent

Integration with probe dispensers, test equipment, external instruments via interfaces

absent

Resistance of contact circuit at contact current 0,1...100 mA

2000 ohm

Presence of the option of supplying control current and (or) voltage to the relay windings (creation and execution of pulse-step

absent

Number of installation sites

3 pcs

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
