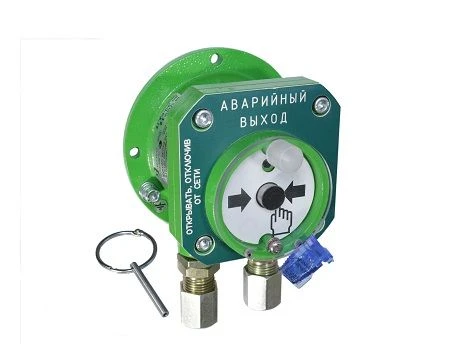

Spectron-512-Exd-A-UDP-03 Remote Start Device for Evacuation Systems

Designed for manual activation of "EVACUATION" systems. Has the function of self-testing and transmission of the signal fault. 2 and 4-wire connection.

Temperature range from -65°C to +85°C. IP66/IP68. Upit - 9...28 V.

Overall dimensions 123x106x122. Housing - aluminium alloy. Explosion protection marking.

1Ex db IIC T6 Gb/Ex tb IIIC T85ºC Db Digital interface via Modbus/RTU protocol. The control centre transmits the "Start" signal to the control panel when the drive element is pressed. When the drive element returns to the initial position, the control centre stops the start signal.
