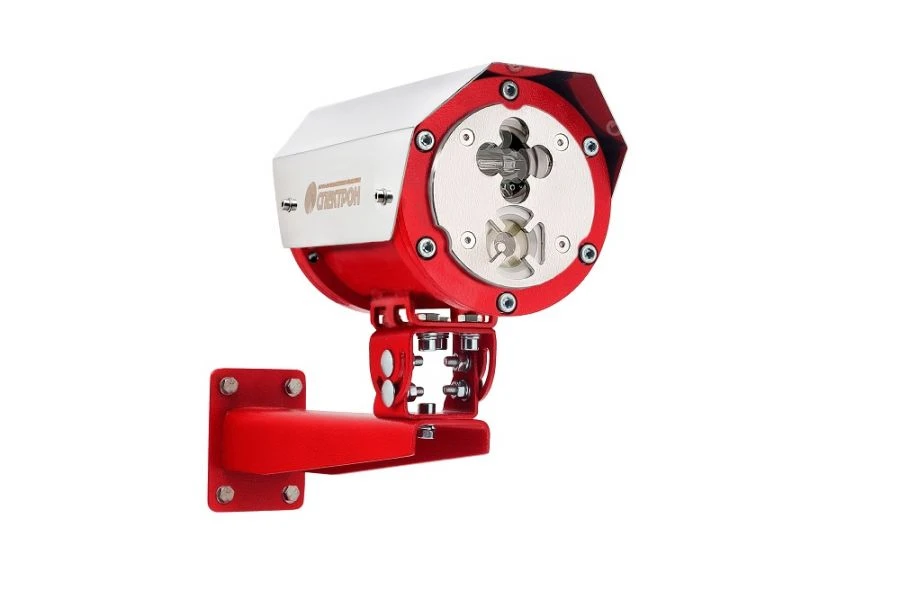

Spectron-601-Exd-M-HART Flame Detector for Reliable Fire Detection

Fire Alarm Detectors

Manufacturer: SPEKTRON LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Spectron-501-Exd-M fire flame detector

Description

Body - galvanised steel. Possibility to set the address. Inertia 3, 10, 15, 22 s (user selectable).

Idezh-50 mA, I pozh-70 mA. I with heating up to 250mA. Explosion protection marking "PB Ex db I Mb X / 1Ex db IIC T6...T4 Gb X / Ex tb IIIC T85ºC...T135ºC Db X".

Digital interface via HART protocol. Extremely immune to heavy optical interference. Recognise manual arc and argon welding as spurious interference.

Applicable in open areas and in enclosed spaces. Glass dust control. Maximum protection area of 2000 square metres.

Flame detection range of TP5 and TP6 - 50 m. Viewing angle of 90°. Sensitivity adjustment "Far"/"Close".

Self-test function, transmission of the signal fault.

Specifications

Weight

4 kg

Overall dimensions

300x200x125 mm

Connection

4-wire

Range

25 m

Type of climatic version according to GOST 15150

UHL1, OM1

Protection against impulse overvoltages (surge protection) according to GOST R 51992-2002

III

Viewing angle

Flat grinder, Specialised grinder

Degree of protection of the shell, IP

Operating temperature range

Flat grinder, Specialised grinder °C

Operating temperature

(55);+90 °C

Designation

SPECTRON 600 Series 600 Multidirectional IR/UV IP329/330 Flame Detector

Assignment

Designed for fire extinguishing systems and fire alarm systems at oil and gas facilities and their infrastructure

Explosion protection marking

PB Ex db I Mb X / 1Ex db IIC T6...T4 Gb X / Ex tb IIIC T85ºC...T135ºC Db X

Housing material

Galvanized steel

Power supply voltage

18...26 V

Sensitivity levels

Grade 1

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
