Available for Import

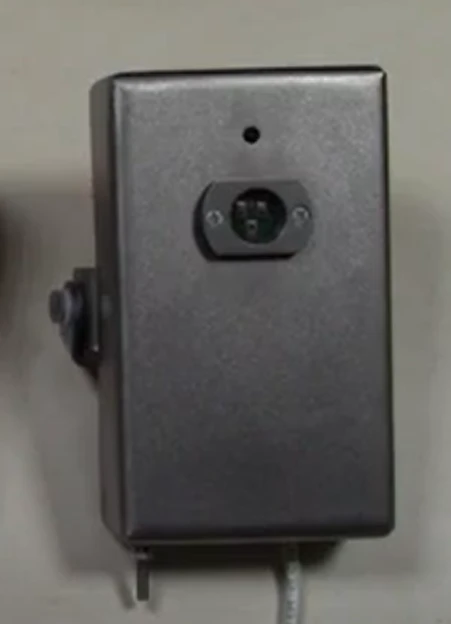

Spectron-804-Exm Flame Detector for Industrial Safety and Monitoring
Bulk pricing available
FOB, CIF & EXW terms available
Description
4-IR detector fire flame Spectron series 804-Ehm. Immunity category - 1 (Maximum) super interference immunity to heavy optical interference. Recognises manual arc and argon welding as spurious interference.
Applicable in open areas and in enclosed spaces with harsh operating conditions. Temperature range from - 55 to + 75°C. Viewing angle 90°.
Flame detection range - 25 m at TP5 and TP6. 4 operating modes with different sensitivity and detection range. There are functions of self-testing and fault signal transmission, tested with a test light.
IP66/IP68. Magnet for performance test included. Explosion protection marking.
PB Ex mb I Mb X/1Ex mb IIC T6 Gb X/Ex mb IIIC T85ºC Db X. Housing - stainless steel. Overall dimensions (HxWxH) 135x109x104 mm.
Digital interface via Modbus/RTU protocol. I alarm - 10mA, I fire - 10mA.
Specifications
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
