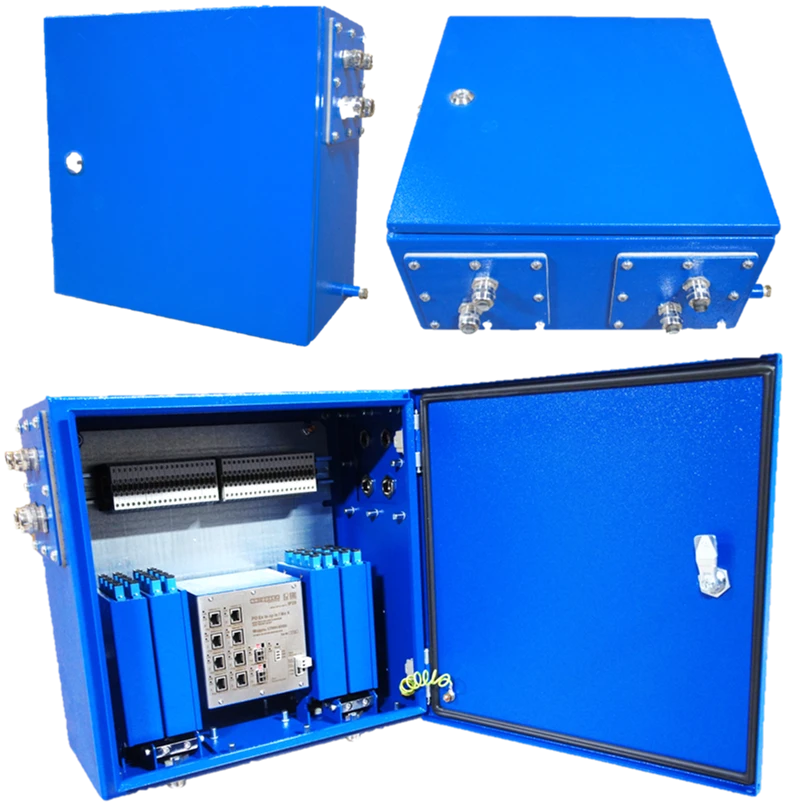

Spin Complex for Data Transmission in Hazardous Areas - SPIN Station

Gas and Smoke Analysers

Manufacturer: INGORTECH LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The SPIN complex is designed for transmission of heterogeneous digital data in the "Mikon III" System, other ACS, IP television, communication systems, etc. in normal and emergency conditions and in explosive atmosphere in underground mine workings, including dangerous by gas (methane), dust and sudden emissions. High-speed communication is provided by Ethernet LX (FOCL) and DSL technologies (mine communication cables), low-speed field communication - by RS-485 technology (mine communication cables).In hazardous areas, SPIN communication stations powered from intrinsically safe power supplies are used. In the LUT communication station, the lines of the external high-speed communication trunk are connected via converters to an Ethernet switch, which forms several Ethernet ports to which LUT modules (interface converters, etc.) are connected.

Specifications

Technology of transmission over copper conductors of trunk level

DSL

Technology of transmission over optical lines of trunk level

Ethernet 100BASE-LX and/or Ethernet 1000BASE-LX

Local transmission technology

Ethernet1000BASE-TX

Field level transmission technology

RS-485

Types of Ethernet switches

Managed

Number of Ethernet ports in the communication station, not less than 183836:Number of Ethernet ports in the communication statio

4 pcs

Number of Ethernet 1000BASE-LX ports in the communication station, not more

2 pcs

Number of DSL ports in the communication station, not more

2 pcs

Number of RS-485 ports in the communication station, not less

4 pcs

Overall dimensions of the communication station, modules, not more, mm

250x140x130

Weight of communication station, modules, max.

50.7 kg

Average MTBF

10000

Assigned, average service life

10.5 year

Protection degree of communication station, modules according to GOST 14254, not worse than

IP20

Level and type of explosion protection according to GOST 31610.0

RO Ex ia op is I Ma X

Explosion protection certificate

EAEU RU C-RU.AA87.V.00403/20

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
