Static Electric Energy Meter Milur 107S.22-GZ-3-DT

Available for Import

Milur 107S Static Electric Energy Meter for Accurate Energy Measurement

Electricity Meters

Manufacturer: MILUR IS LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

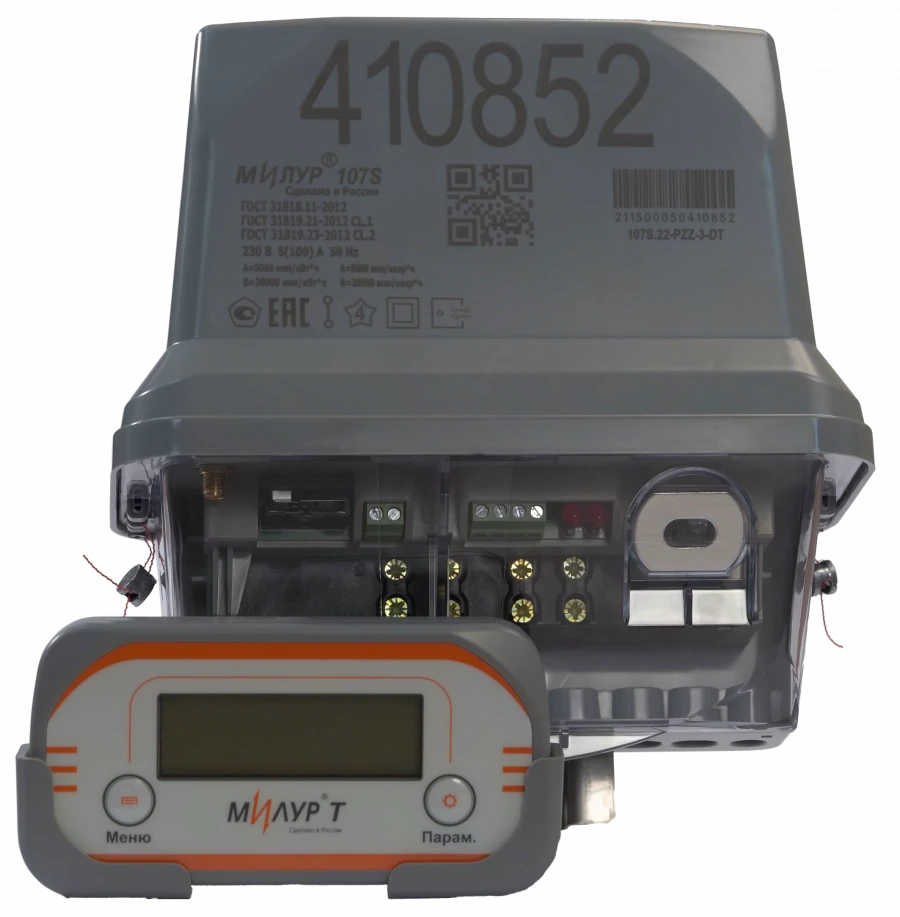

Static single-phase electric energy meter "Milur 107S" in SPLIT case

Description

Milur 107S static single-phase electricity meter with SPODES protocol support in SPLIT case for outdoor installation with portable indication unit "Milur T" with load control relay and measuring element in the neutral wire is designed for metering of active and reactive electricity consumption in two-wire AC network with frequency 50 Hz.

The meter can operate both autonomously and as part of automated metering systems, registering electricity consumption and storing data in non-volatile memory.

The measuring unit of the outdoor meter transmits information about the consumed volume of electricity to the measuring unit of the consumer indication "Milur T" via RF 433 MHz radio interface according to Mi107 protocol.

Data exchange with automated metering systems or computer is carried out via GSM interface. The meter is equipped with an opto-port.

Specifications

Accuracy class

2.0, 1.0

Nominal voltage

230 V

Rated current

5 A

Mounting method

To the screws

Maximum current

100 A

Maximum operating temperature

70 °C

Minimum operating temperature

-50 °C

Type of metered energy

Reactive, Active

Type of readout device

Electronic

Number of phases

Type

Multi-tariff

Type of product according to PP RF 616

Other tools and instruments for measurement, inspection and testing

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
