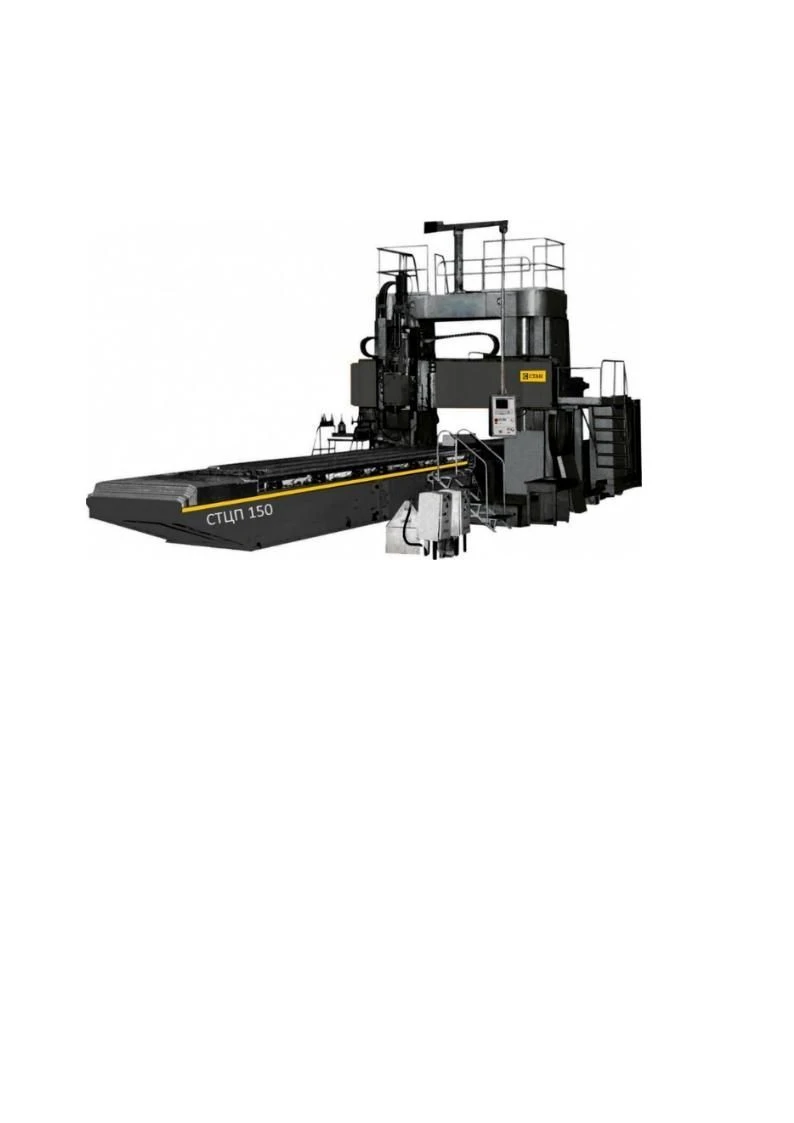

STCP 150 Machining Center and Its Modifications for Precision Engineering
Manufacturer:
ISZ LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Centre machining STCP 150 and its modifications with a fixed portal, with sliding guides on which the table moves longitudinally. The gantry consists of two racks connected at the top by a cross bar. On the sliding guides of the columns in the vertical direction in the setting mode moves the crossbeam, on the combined guides of which, in the transverse direction relative to the table, moves a carriage transverse with a base, carrying a vertical carriage with a slider and spindle.
Specifications
Type of product according to PP RF 616
5-axis portal machining centers
Machine type
28.41.12.110 Machining center
Height
5350 mm
Width
6400 mm
Length
12550 mm
Table work surface size
1500 ? 4000 * mm
Table load capacity
10000 kg
Tool cone
SK50
Maximum spindle speed
2000
Rated torque (S1/S6)
480 / 750 Nm
Moving in the X axis
4500 mm
Moving in the Y axis
2100 mm
Z-axis travel (slider vertical)
500 mm
Speed of fast movements in X, Y / Z axes
10000 mm/min
Tool magazine capacity
SBVVBG pcs
Accuracy class according to GOST 30027
?
Control system
CNC
Set travel of the crosshead
900 mm
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
