Sterile Single-Use Active Wound Drainage Device with Balloon for Effective Drainage

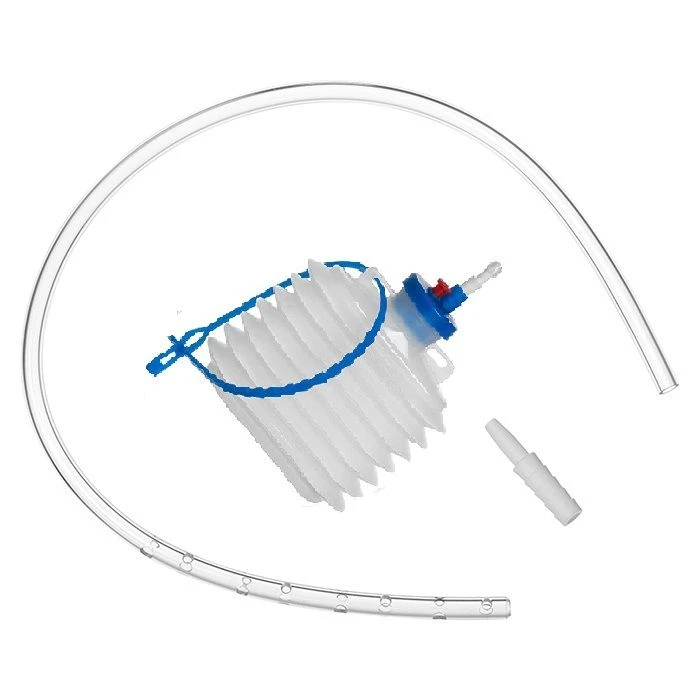

Device for active wound drainage of single use is designed for active (due to vacuum) drainage of wounds in pre- or postoperative periods. It is made of polymeric materials for medical use. The device consists of a corrugated balloon of 250 ml and a drainage unit with one tube of 700 mm length and 11 mm external diameter.

The corrugated balloon is fitted with a removable stopper. On the inner side of the cork of the cylinder there is a non-return valve, which prevents accidental ingress of biological fluid back into the drainage tube and provides closure of the drainage system from contact with the external environment when the tube is disconnected from the cylinder. An air valve is located on the exterior of the cylinder stopper, which provides convenience for personnel to operate the device.

Also on the outer side of the cork there is a connector to which the drainage unit is connected through an adapter. On the cylinder there is a fixing element.
