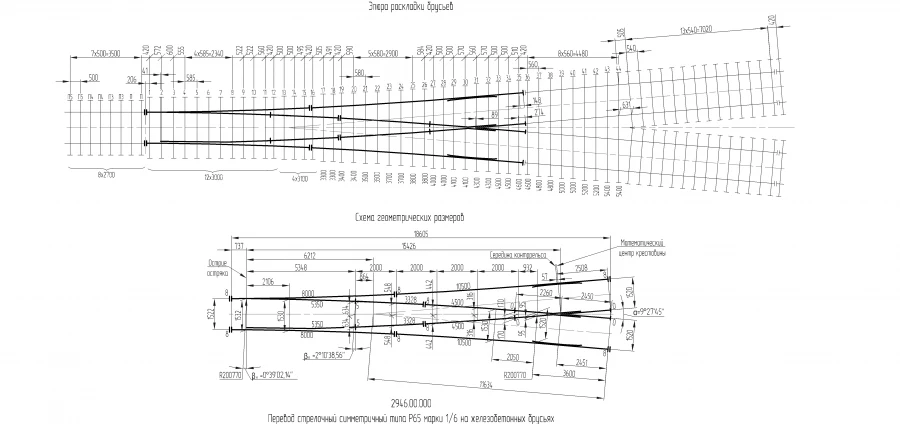

Symmetrical Switch Type R65 for Rail Transfer on Concrete Beams

Designed for the transfer of rolling stock from one track to another and is used on the hilly and receiving-departure tracks. Design features: transfer: on screw and dowel fastening; terminals type PK; switches: rotary shackles with liner-overlay fastening of the root; elastic U-shaped spring terminals; pads with pads on the welded connection; crosses: prefabricated with rail whiskers and shortened cast core made of high manganese steel with rail ends welded to its rear end; counter rail made of SP850 corner
