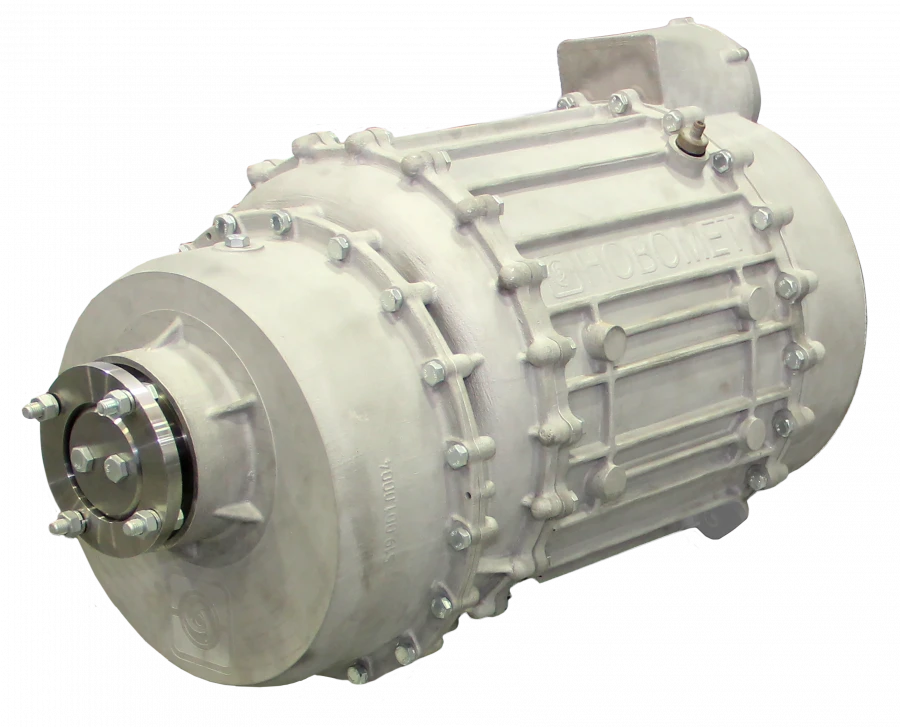

TRACTION MOTOR TEDN200-650-2530-4500/2-1-1

High-Power Multi-Phase AC Motors

Manufacturer: NOVOMET-PERM OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Electric traction motor TEDN200-650-2530-4500/2-1-1 produced by JSC "Novomet-Perm" is designed for application in electric drive system of freight and public electric transport.

Specifications

Working range of inverter DC link voltages

550 to 750 V

Operating frequency range

0 to 435

Nominal speed

637

Speed range for S2 mode (30 min) with constant power.

637 to 2530

Maximum speed

not more than 2530

Torque at 30-minute output shaft power, N-m, at speeds up to 637 rpm

2957

Maximum useful torque at the output shaft, N-m, at speeds up to 637 rpm

4500

Максимальный КПД

Not less than 91 %

Weight

No more than 300 kg

Gearbox ratio

3,36

Power

130 kW

Power

200 kW

Power

300 kW

Motor current with gearbox

267 A

Motor current with gearbox

375 A

Motor current with gearbox

530 A

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
