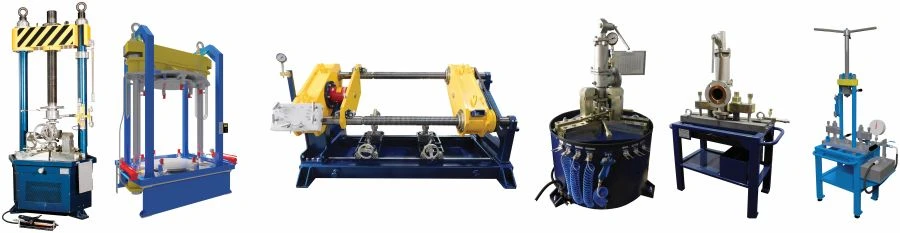

Testing Stands for Material Strength and Density - STI Series Applications

Measurement and Control Devices

Manufacturer: CJSC SPECIAL TECHNOLOGIES

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Purpose Test bench for carrying out:

- strength and density testing of the material of body parts and welded seams pressurised by the test medium;
leak tightness test;
performance tests;
adjustment of safety valves.

Tested Products

- shut-off pipeline valves;
safety pipeline valves;
wellhead and downhole equipment.

Connection type

- flanged;
coupling;

trunnion;</em>

socket;

welded;</em>

plunger.

at the customer's request.

Advantages

- all elements in contact with water are corrosion-resistant or have anticorrosion coating;

power hydraulics of the clamping device works from the oil pumping station, which increases the service life of the stand;

testing of the valve for tightness of the closure from both sides.

Specifications

Type of product according to PP RF 616

Instruments and other instruments for measurement, control and testing

Methods of clamping of articles under test

Manual (by adjustable clamps), hydraulic (by means of hydraulic jack)

Methods of placing, fixing sealing of articles under test

Vertical (with clamps and bottom plug), vertical (with crossbeam and plug set), horizontal (with movable supports and plug set).

Additional features

Installation of a tank with a pump for storage and circulation of the test liquid used, installation of replaceable pressure gauges for monitoring the pressure in the hydraulic pressure line.

Medium used in the hydraulic pressure line

Oil

Source of pressure in hydraulic pressure line

external pneumatic hydraulic power packs, hydraulic power packs, pneumatically controlled hydraulic pumps

Hydraulic clamping bench force

40-2800 tps

Pressure in the hydro press line

0...70 MPa
