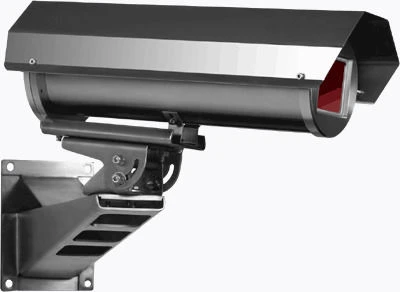

Thermal Enclosure THM32H-24V-IR for Protecting Fixed Lens Thermal Cameras

The THM32H-24V-IR Thermal Shroud protects the fixed lens thermal imager from adverse environmental conditions in marine climates, chemical plants and other corrosive environments. Type: INFRARED. The sight glass is made of material, transparent in the area of 7-14 microns.Two-sided illuminating coating provides transmittance at the level of 94%.All external elements of construction are made of stainless materials with increased corrosion resistance.Diameter of cables for connecting the thermal housing 6*10 mm.The weight of the complete thermal casing 13 kg.The maximum load on the bracket 60 kg with a reserve factor of 2.6.The material of the body and bracket stainless steel 12X18H10T.Fasteners stainless steel.Material sealing gaskets TMKShch (thermal, oil-, acid-, alkali resistant rubber).Cable glands Metal (brass).
