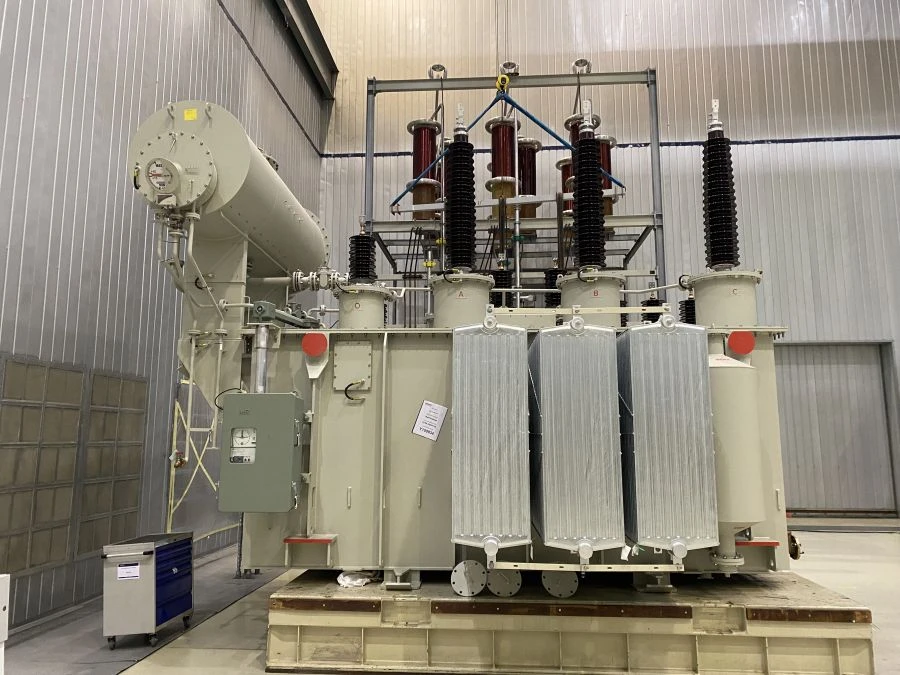

Three-Phase Oil Power Transformer TDTN-10000/110 Available for Import

Three-Phase Oil Power Transformer TDTN-10000/110 for Efficient Energy Conversion

High-Power Electrical Transformers
Manufacturer: Voronezh Transformer LLC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

Functional purpose: conversion by electromagnetic induction of one or more AC systems into one or more other AC systems. Main consumer qualities and parameters: transformers are manufactured in accordance with GOST 11677-85, GOST 12965-85. Rated power: 10000 kVA; rated current of HV winding: 50,2 A, rated current of CH winding: 150 A; Rated current of LV winding: 524,9 A; Rated voltage of HV winding: 115 kV,Rated voltage of SN winding: 38.5, Rated LV winding voltage: 11 kV; Number of phases: 3; Number of windings: high voltage windings, medium voltage windings; low voltage windings; Dielectric type: transformer oil.

Specifications

Length
5895 mm
Width
4458 mm
Height
4622 mm
Type of insulation
Oil
Possibility of regulation under voltage
Armoured glass
Transformer type
Power
Rated power
10000
Nominal voltage
110
Save Your Time

Share your requirements for a quick response!

Instant response in 15 minutes
Best wholesale prices guaranteed
Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
