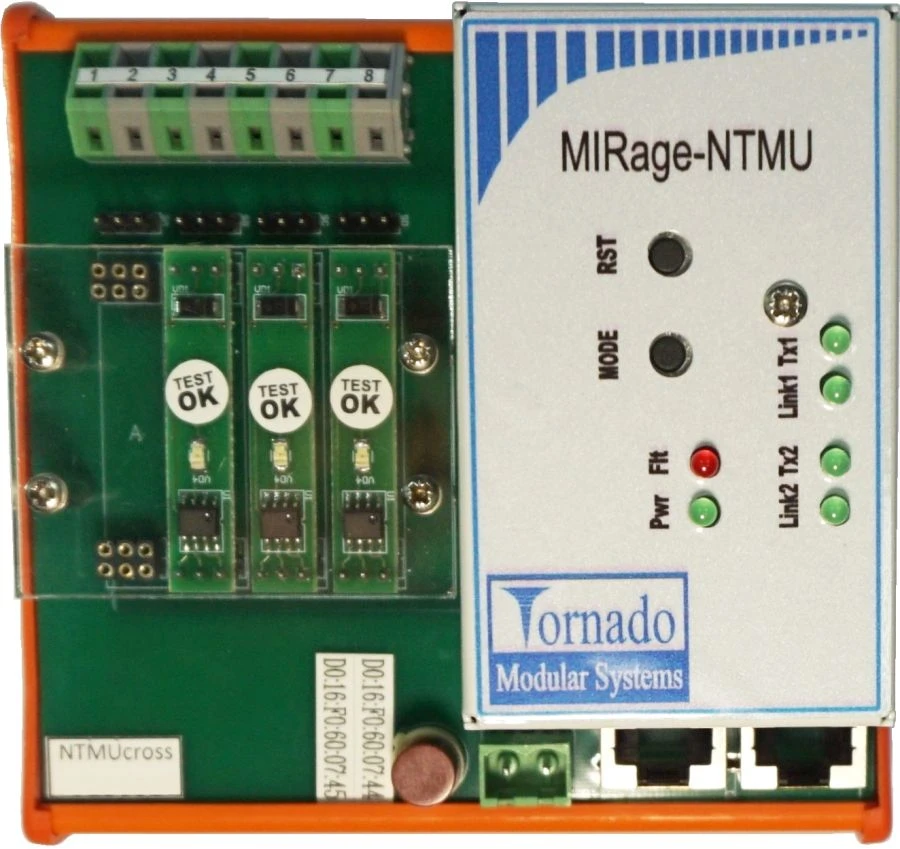

Timer Processing Device for Three Sensors Braun A5S without Frequency Generator 12V (MIRage-NTMU-U-L)

Available for Import

Timer Processing Device for Three Sensors Braun A5S - MIRage-NTMU-U-L for Signal Measurement

Automatic Control Devices

Manufacturer: Tornado Modular Systems LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The MIRage-NTMU-U-L timer processing devices are designed to measure the time characteristics of periodic pulse signals and generate a pulse sequence with variable pulse repetition rate at a given rate of change of pulse repetition rate. The number of measuring channels (IR) of periods is 3, the number of IR of pulse generation is 1. Data exchange is carried out via redundant Ethernet interface via UDP protocol. When configuring and controlling the operating modes of the device, the ModBus protocol add-on is used, and the transmission of the flow of measured period values takes place in direct RAW mode without requests. MIRage-NTMU-U-L devices are designed to create automated process control systems (APCS) in various industries.

Specifications

External supply voltage (+/- 15%)

24 V

Consumption current, max.

75 mA

Operating temperature range

-25...70 °C

Wago terminal block, conductor cross-section up to

2.5 mm²

Weight, not more

450 year

Overall dimensions

114x108x111 mm

Galvanic insulation

Individual

Relative frequency error of the reference oscillator in the operating temperature range

0.005 %

Reference oscillator frequency

Data exchange protocol

Modbus TCP/UDP slave

Data transfer rate

100

Number of measuring channels for pulse generation

1 pcs

Interface type

Ethernet 10/100BaseTX - 2 channels

Number of period measurement channels

3 pcs

Mechanical design

DIN rail mounting

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
