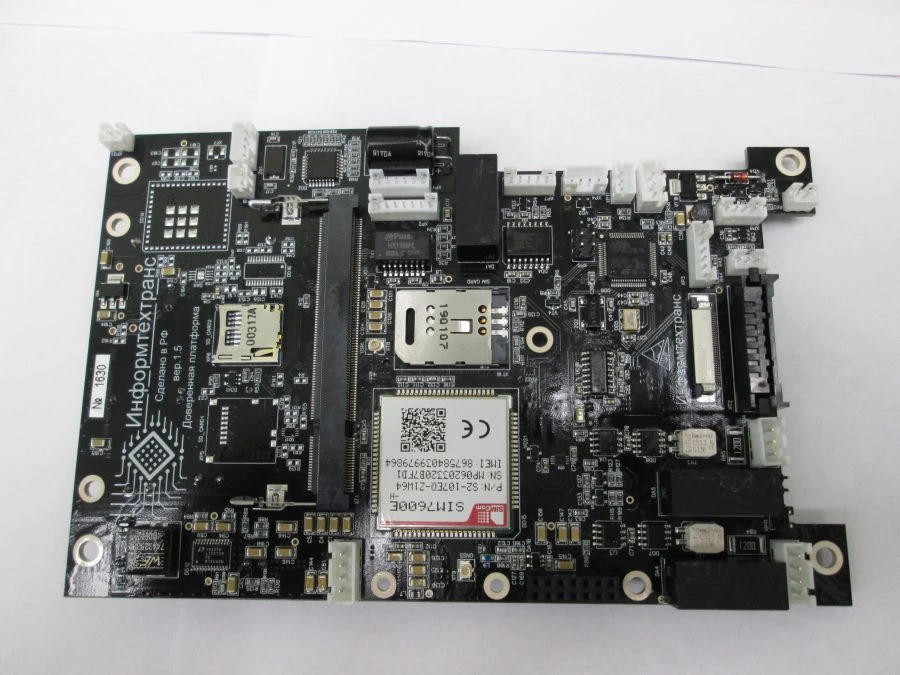

Trusted Computing Platform Motherboard JLTK.687281.173 for Industrial Computing Solutions

System board ZhLTK.687281.173 (hereinafter - System board) is designed for building trusted computing platforms of responsible application. Field of application: industrial computers and controllers. Supported processor modules: <ul> <li>- ????.687281.193;</li> <li>????.687281.218;</li> <li>????.687281.228;</li> <li>other industrial processor modules using SO-DIMM standard connector.</li> </ul>Realisable I/O interfaces: <ul> <li>- 2 x CAN;</li> <li>1 x USB OTG;</li> <li>1 x USB;</li> <li>1 x RS-232;</li> <li>1 x RS-485;</li> <li>1 x 1-Wire;</li> <li>1 x Ethernet 10/100;</li> <li>1 x LVDS;</li> <li>1 x Keyboard;</li> <li>1 x HDMI (optional);</li> <li>1 x GSM 4G</li> <li>1 x miniPCe (for expansion cards).</li> </ul>The system board is manufactured in climatic version U, placement category 2.1 according to GOST 15150-69.

By degree of protection against penetration of water and foreign objects in the version IR00 according to GOST 14254-2015. Overall dimensions of the System Board, Length x Width x Height - 110x170x29 mm.
