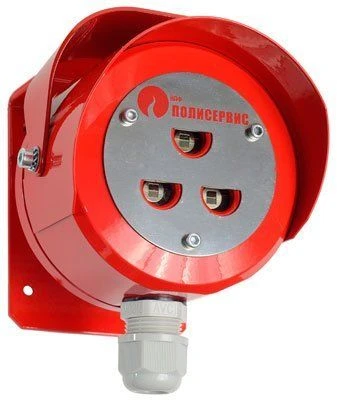

Tulip Flame Detector 2-14 for Early Fire Detection and Safety

The detector is designed to detect electromagnetic radiation of flame in the infrared range and to generate a fire notification. GOST P 53325 - IP 330-22-1. Class of the detector - 1.

The detector detects the flame by pulsating electromagnetic radiation in three sections of the IR range: the first reference 4.0 µm, the second reference 5.0 µm and the measuring 4.4 µm. Microprocessor adaptive processing of three IR channels allows the detector to be used for registration of fire sources of various materials regardless of external conditions and practically eliminates the influence of false alarm sources on the formation of fire notification. Structurally, the detector is made in the form of a collapsible (base and cover) aluminium housing with a canopy fixed on a bracket, which provides the possibility of orienting the product in space relative to the horizontal axis.

Power supply of the product and communication with the control panel is carried out by means of a cable inserted into the product through a cable gland.
