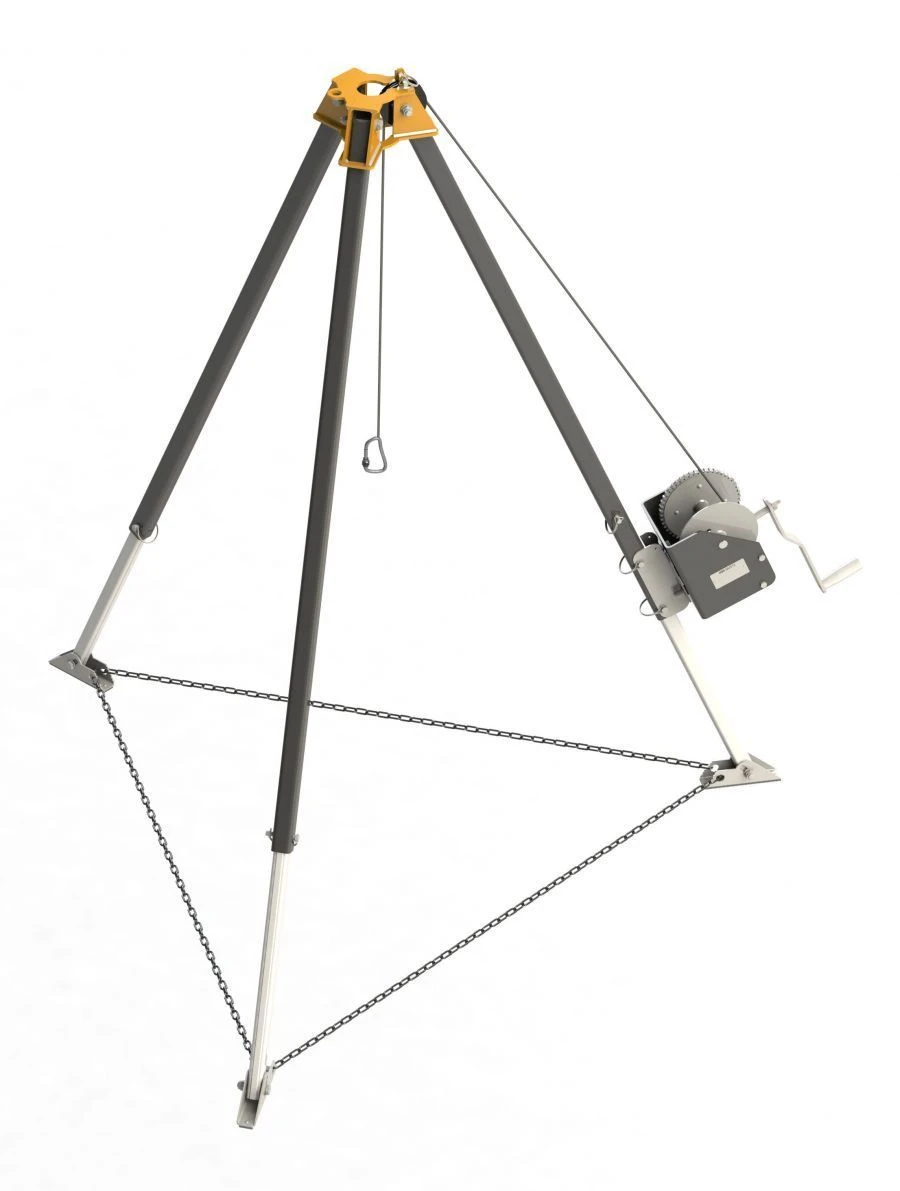

Type B Anchor Device, Tripod for Height Safety and Rescue Applications

The tripod is an anchoring device of type B and is a component of the safety system for work at height, as well as a component of the rescue and evacuation system when used together with rescue lifting devices - winches. It is designed for work of users in confined spaces (tanks, cisterns, wells, bunkers, reservoirs, wells, etc.). -Maximum number of users - 1 -Maximum design load (maximum user weight, including the weight of tools and equipment): 150kg.

-Working height: 229 cm - supports apart, 147 cm - supports collapsed. -Distance between supports: 171 cm - supports apart, 110 cm - supports collapsed. -Weight: 17kg.

-Dimensions: 1802424 cm. -Number of anchor points: 6. -Head part - galvanised painted steel.

-The head part has a built-in block roller with a fixing pin, through which the winch cable passes. -Fixing points - three lateral in the head part and tr...
