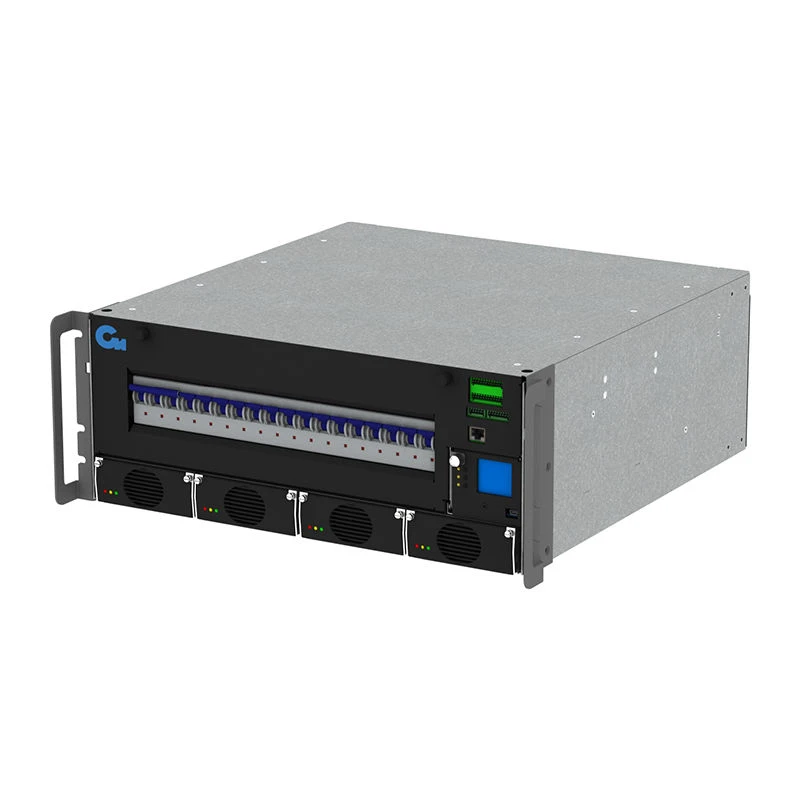

Uninterruptible Power Supply System UVC Type UVS48-12 for Critical Power Needs

DC Power Supplies

Manufacturer: PARUS ELECTRO LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

VLS type UHS48-8

Description

Uninterruptible DC power supply system UPS of UBC type are power supply units designed for universal application to provide uninterruptible power supply of critical equipment, including telecommunication, communication equipment and other types of objects. The peculiarity of the system is its modular design, which allows installation of 1 to 4 power units with a capacity of 2 or 3 kW each. The power range of the system varies from 8 to 36 kW, the power is increased by connecting additional 1U expansion cassettes, each of which includes up to 4 units.

Wide range of supply voltages: from 85 to 300 V. Thermal compensation system for battery charging voltage. The product is manufactured and supplied in the form of special constructions designed for installation in 19" rails of telecommunication and other electrical cabinets.

Remote control of the UWS operation via RS-485, USB and SNMP is possible.

Specifications

Maximum output current

250 A

Power

12000 W

Output DC voltage

48 V

Type of power module

2...3 kW

Number of available expansion slots

4 pcs

Warranty

Controller

ICU (Intelligent Management Controller)

Nominal input voltage

400 / 230 ?

Nominal voltage range

85 ~ 300 ?

Output voltage regulation

43,2 ~ 58 ?

Maximum power output

B1/B8 2100/900 MHz kW

Maximum output current

Не менее 250 ампер

EFFICIENCY

More than 96%

Operating temperature

-10C +50C

Relative humidity during operation

80% at +25C

Size (W x D x H), mm

485x419x177

Net weight, kg

Not more than 40 (with power modules)

Declaration of Conformity

Declaration of the Ministry of Communications No. D-EPBP-9760 of 05.10.2022

Certificate of Conformity

EAEC RU C-RU.AB53.V.047325/22

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
