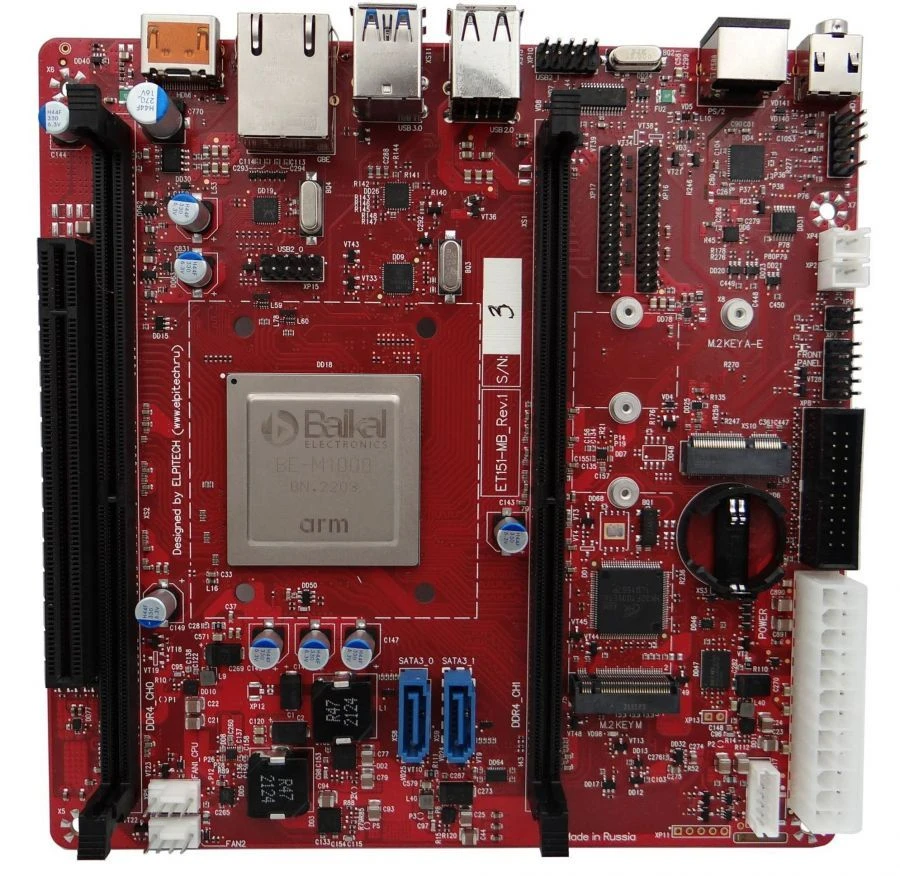

Universal Mini-ITX Motherboard ET151-MV-1 with BE-M1000 Processor

Available for Import

Universal Mini-ITX Motherboard ET151-MV-1 for High-Performance Computing

Mounted Circuit Boards

Manufacturer: ELPITECH LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Universal motherboard running domestic processor BE-M1000 ("Baikal-M"), made in Mini-ITX form factor. The board is a high-performance basis for a wide range of domestic personal computing devices that can fully replace imported analogues. These computing devices can be used for information processing by users, in network infrastructures, ACSP, training of students, processing and transmission of information in the interests of public administration, in public institutions, including strategic orientation, in state corporations.

Specifications

Supported OS

Alt, RED OS, Astra Linux

Availability of video connectors

mini-ITX

Number of processor cores

8 pcs

Processor

Baikal BE-M1000

M.2 type

M.2 M key

Nutrition

ATX24

Internal connectors

2 × SATA 3.0 6 Gb/s, stereo speaker connectors, 2 × 4-pin fan connectors with PWM control, RTC battery connector, RTC 24-pin power connector.

Front panel inputs/outputs

HD Audio connector, front panel connector (buttons, LEDs), 4 × USB 2.0

External inputs/outputs on the rear panel

1 × HDMI out, 1 × LVDS, 2 × USB 2.0, 2 × USB 3.0, 1 × RJ45 1000BASE-T, Headset jack, PS/2

Expansion slots

M.2 M key (PCIe 3.0 x 4) for NVME or SATA SSD, PCIe 3.0 x16 slot (x8 lane)

Maximum RAM capacity

Up to 64 GB (up to 2 DIMM modules)

RAM TYPE

DDR4 2133 (including ECC)

Processor architecture

ARM Cortex A57

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
