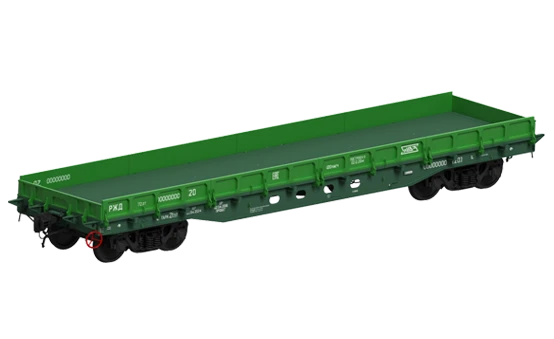

Universal Platform Wagon Model 13-192-01 for Transporting Wheeled and Tracked Equipment

Railroad type flat cars

Universal

9720 mm

(up to floor level) - 1310; (with raised sides) - 1809 mm

(at evenly distributed load) - not more than72 t

(along coupling axes of couplers) - 14620; (along end beams) - 13400. mm

120

(axial) - 230;5 (23;5) kN (tf); (linear) - not more than 6;43 (63;074) tf/m (kN/m)

(evenly distributed in the middle of side beams at length of 3 m) - not more than 45; (evenly distributed in the middle of side beams at length of 4;3 m) - not more than 60 t

21.5 t

models 13-192-01

38.4

32year

friction; pad; pneumatically driven single-acting

(on forestay brackets) - 3141 mm

(on side beams) - 2870 mm
