Universal Platform Wagon Model 13-192-02 Available for Import

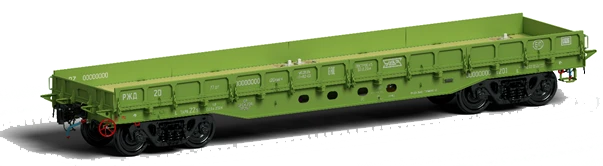

Universal Platform Wagon Model 13-192-02 for Transporting Heavy Loads

Rail Flatbed Wagons
Manufacturer: URALVAGONZAVOD OJSC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

Universal flatcar model 13-192-02 is designed for transportation of long and timber cargoes, wheel pairs, metal structures, wheeled and tracked vehicles, tank containers, large and specialised containers, including those with maximum gross weight of 36 tonnes, as well as piece, packaged and bulk cargoes. The wagon is equipped with 18-194-1 model cargo bogies with axle load of 25 tonnes.

The advantage of the new flat wagon is the increased load capacity up to 77 tonnes. The new flat wagon is equipped with hinged fitting stops, which in case of obstruction of cargo placement on the wagon are tilted into the groove, taking the position below the floor level. Also the applied stops provide stability against tipping of the empty container in case of wind loads.

Specifications

Type of product according to PP RF 616
Railroad type flat cars
Width of platform on forest rack brackets
3141 mm
Frame width at side beams
2870 mm
Platform length along coupling axes of couplers
14620 mm
Platform base
9720 mm
Number of axles
4 pcs
Weight of load evenly distributed in the middle of side beams at length of 4,3 m, tonne, not more
62 t
Weight of load evenly distributed in the middle of side beams at length of 3 m, tonnes, not more
45 t
Lifting capacity at evenly distributed load, tonnes, not more
77 t
Frame length at end beams
13400 mm
Minimum permissible tare weight in operation
20.64 t
Tare weight
22.5 t
Number of fitting stops
8 pcs
Track width
1520 mm
Design speed
120
Dimension according to GOST 9238
- bodies 0-VM; - bogies 02-VM
Number of containers carried by the platform, of the size according to GOST R 53350 (ISO 668)
- 1EEE, 1EEE (maximum gross weight 36 tonnes) 1**; - 1AAA, 1AA, 1A, 1A, 1AX (maximum gross weight 36 tonnes) 1; - 1CC, 1C, 1CX (maximum gross weight 36 tonnes) 2. pcs
Static linear load, tf/m (kN/m), not more
6,84 (67,1)
Design static axial load, kN (tf)
245 (25)
Height of platform with raised sides
1826 mm
Platform height to the level of the floor decking
1327 mm
Floor area
38

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
