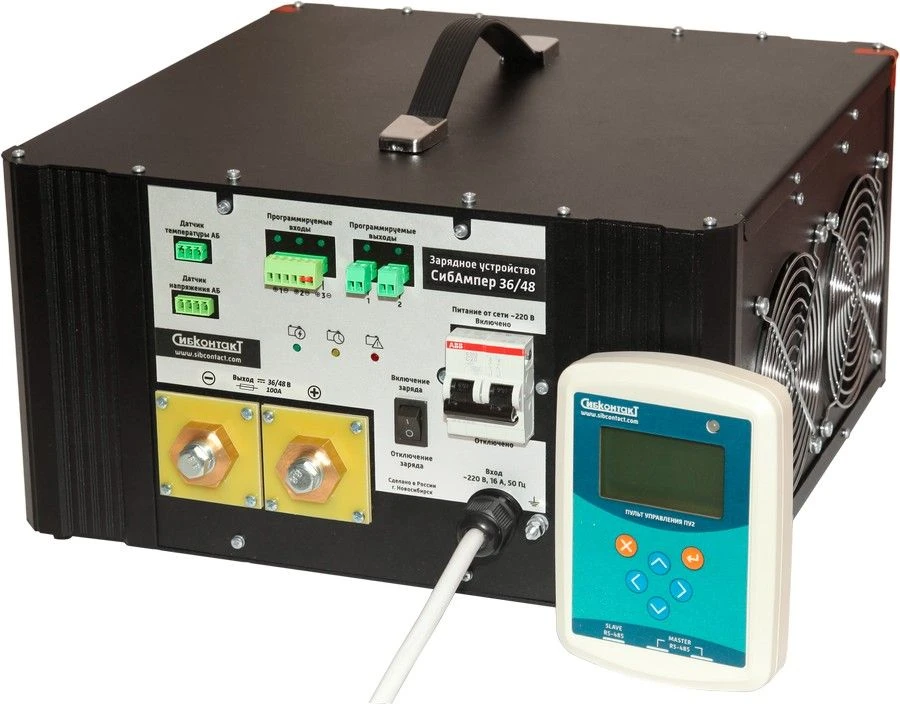

Universal Powerful Charger SibAmper 36/48, 36V/60A, 48V/50A

Available for Import

SibAmper 36/48 Universal Powerful Charger for Efficient Charging

Static Power Converters

Manufacturer: SIBKONTAKT LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

SibAmper 36/48 is a high-frequency automatic battery charger with a power factor corrector. The power factor corrector ensures sinusoidality of the current consumed from the mains. The power factor corrector allows to set the required temperature compensation value (mV/°C) depending on the technical requirements of the lead-acid battery manufacturer for the charging process. This is necessary for the most gentle and efficient charging.

For preset types of ABs (GEL, AGM, FLOODED) the thermal compensation depending on the stage of charge has a value of minus 48 to minus 72 mV/degree for ABs with a nominal voltage of 36 V . Minus 72 to minus 96 mV/degree for 48 V nominal voltage batteries.

For UserACID, the thermal compensation is adjustable from 0 to -108 mV/degree for 36 V rated batteries. The range is 0 to minus 144 mV/degree for 48 V nominal ABs.

Specifications

Battery type

GEL, AGM, FLOODED (GEL, AGM, FLOODED), including traction, and lithium-ion batteries (LIB)

Size

350x330x175

Number of slots

1 pcs

Connection type

Screw

Availability of automatic shut-off function

Armoured glass

Charging completion indicator

Armoured glass

Fault monitoring function available

Armoured glass

Temperature control function

Armoured glass

Battery capacity check function

Armoured glass

Availability of individual charging channel

Armoured glass

Availability of built-in display

Armoured glass

Availability of movable minus function

Armoured glass

Presence of overcharge protection function

Armoured glass

Drip charge function available

Armoured glass

Presence of pre-discharge function

Armoured glass

Availability of capacity recovery function

Armoured glass

Polarity check function

Armoured glass

Maximum charge current, mA

5000

Nominal voltage

48 V

Output power, kVA

1.2

AC input voltage

220 V

Output voltage

48 V

Parallel work

Armoured glass

Remote monitoring

Armoured glass

Protection against reverse current

Armoured glass

RFI interference level filter

Armoured glass

Isolation transformer at the rectifier input

Armoured glass

Isolation transformer of the standby input and rectifier

Armoured glass

Input power factor corrector

Armoured glass

Thermal compensation of battery recharge voltage

Armoured glass

Isolation monitoring of load output circuits

Armoured glass

Group spare parts

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
