Universal Server "Pantera-M114" (NIKA.466533.388)

Available for Import

Universal Server "Pantera-M114" for IT Infrastructure Applications

Digital Computing Systems

Manufacturer: NT CJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

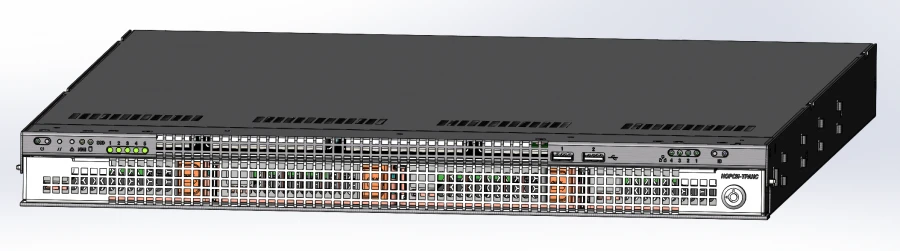

Universal 1U high server based on processors working on x86 architecture for building IT-infrastructure and dedicated placement of applications and services. The product can be used as a server for applications, security, management, as well as providing the work of e-mail, electronic document management systems and for data storage. It is possible to connect existing FC infrastructures and disc shelves, as well as to use it as part of clusters for parallel and fault-tolerant computing.

The enclosure is designed to accommodate 4 hot-swappable 3.5" (LFF) and 5 2.5" (SFF) discs. The enclosure is equipped with a system of protection against unauthorised access to the internal space (sensors for opening the front panel and the cover of the case). It is possible to change the configuration of the server by using different expansion cards to meet customer requirements.

Specifications

Number of USB 3.x ports

Maximum number of processors

2 pcs

Server type

rack

Number of installed processors

2 pcs

Number of slots for RAM modules

16 pcs

Supports RAM error detection and correction function

Supported by.

Maximum number of drives per enclosure

9 pcs

Number of LFF (3.5) drive slots on the front panel

4 pcs

Availability of cable laying device

absent

Availability of rails for installation in the telecommunication cabinet

Included

Housing type

rack

Protective safety panel

In stock

Dedicated port for remote server management

In stock

Availability of an integrated video adapter

In stock

Number of occupied units in the rack

Supported drive interface

SAS/SATA

RAID types supported by the disk controller

0, 1, 5, 6, 10, 50, 60

Disk controller cache protection in case of server power loss

In stock

Number of USB 2.0 ports

USB port layout type

On the back: 2 pcs. - USB 2.0 ports; 2 pcs. - USB 3.0 ports; Front: 2 pcs. - USB 2.0 ports

Redundancy level of installed power supplies

N+1

Availability of a hardware disk controller

In stock

Number of power supplies installed

2 pcs

Number of hot-swappable power supplies installed

2 pcs

Full power of one power supply unit

1200

Network port type

RJ45

Number of Ethernet network ports

4 pcs

Type of product according to PP RF 616

Computational electronic digital machines, supplied as systems for automatic data processing

Form factor

Rack-mounted, 1U

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
