Universal Server "Tiara-M14" on Baikal Processor (NIKA.466533.318-01)

Available for Import

Universal Server "Tiara-M14" for Versatile Applications with Baikal Processor

Digital Computing Systems

Manufacturer: NT CJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

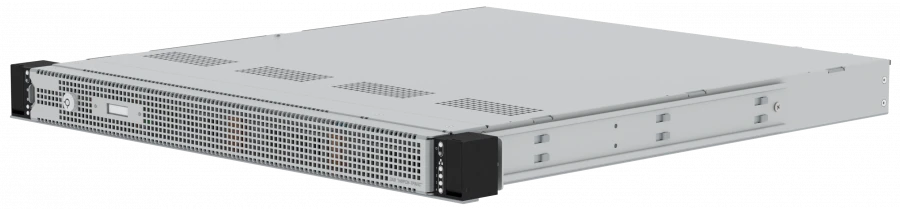

Universal entry-level server "Tiara-M14" on ARM architecture with built-in 2x1G, 2x10G SFP+ Ethernet-interfaces and the ability to install two PCIe expansion cards provides a balance between the requirements for the installation of expansion cards and the available capacity of disc storage. The server is built on the basis of a single-processor motherboard of own production with installed processor "Baikal-M1000". The server has a depth of 529 mm and a height of 1U, which allows installation in wall cabinets, providing the customer with fast deployment of IT infrastructure. It is possible to install up to 4 hard drives of 3.5 form factor (LFF) and up to 5 hard drives of 2.5 form factor (SFF )

Specifications

Number of USB 3.x ports

Maximum total supported RAM capacity

Maximum number of processors

1 pcs

Server type

rack

Number of installed processors

1 pcs

Number of cores of each installed processor

16 pcs

Number of slots for RAM modules

4 pcs

Maximum number of drives per enclosure

9 pcs

Number of LFF (3.5) drive slots on the front panel

4 pcs

Availability of rails for installation in the telecommunication cabinet

In stock

Housing type

rack

Protective safety panel

In stock

Dedicated port for remote server management

In stock

Remote server management system

In stock

Availability of an integrated video adapter

In stock

Number of occupied units in the rack

Supported drive interface

SAS/SATA

Number of USB 2.0 ports

USB port layout type

On the front side: 2 pcs; on the back side: 2 pcs.

Location type RS-232

on the front side

Redundancy level of installed power supplies

N+1

Number of processor cores

16 pcs

Number of power supplies installed

2 pcs

Number of hot-swappable power supplies installed

2 pcs

Full power of one power supply unit

300

Number of Ethernet network ports

4 pcs

Ethernet network port speed

Type of product according to PP RF 616

Computational electronic digital machines, supplied as systems for automatic data processing

Cooling subsystem

Air

Power subsystem

220 V, Redundancy level N+1

Case Form Factor

19" rack, 2U high

Internal power supply

300 W

Processors

BE-M1000

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
