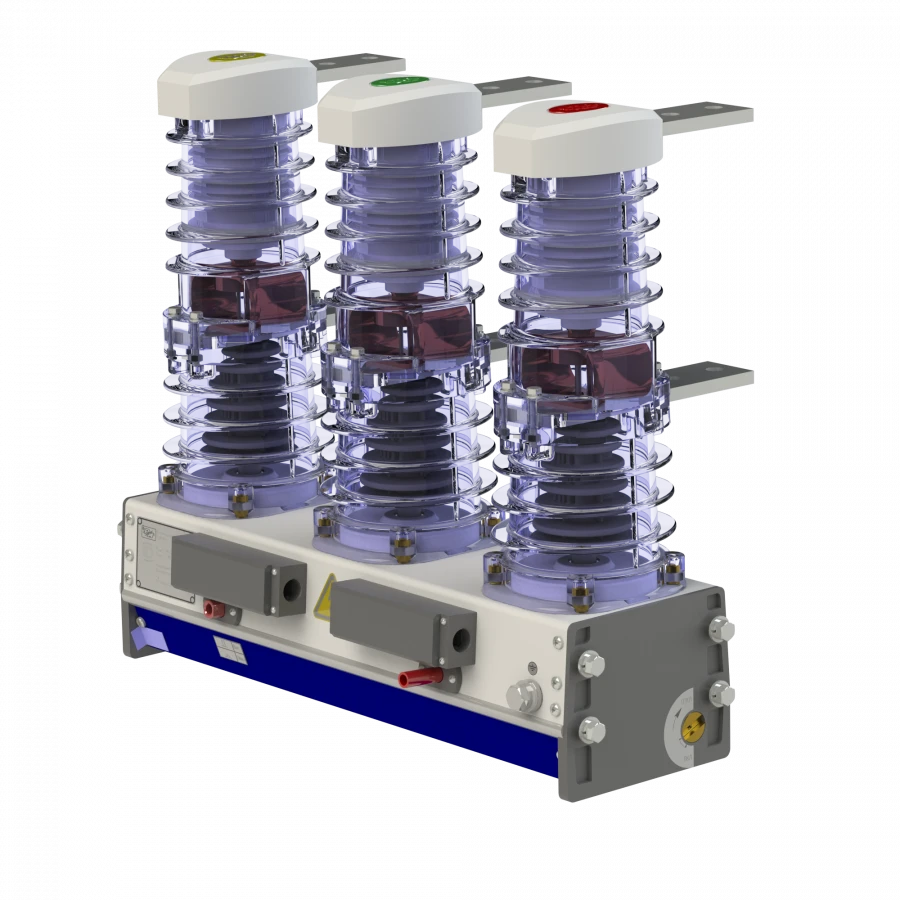

Vacuum Circuit Breakers RIM VV for High Voltage Switching in Power Networks
Manufacturer:
RIM OJSC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Vacuum switches RIM BB are designed for:
- switching of high-voltage electric circuits during normal and emergency modes in networks of three-phase alternating current with frequency 50 Hz with rated voltage up to 10 kV and rated switching currents 630, 800, 1000 A for systems with isolated and grounded neutral;
- newly designed switchgear and CSR cabinets, for reconstruction (retrofit) of in-service switchgear and CSR cabinets;
- application as trip units and means of switching in reclosers and other devices that distribute and consume electrical energy.
The RIM BB vacuum circuit breaker is controlled by the RIM BU control unit, which is a part of the RIM BB vacuum circuit breaker. The RIM BU control unit is designed as a separate module and is intended for interaction with relay protection and automation.
- switching of high-voltage electric circuits during normal and emergency modes in networks of three-phase alternating current with frequency 50 Hz with rated voltage up to 10 kV and rated switching currents 630, 800, 1000 A for systems with isolated and grounded neutral;
- newly designed switchgear and CSR cabinets, for reconstruction (retrofit) of in-service switchgear and CSR cabinets;
- application as trip units and means of switching in reclosers and other devices that distribute and consume electrical energy.
The RIM BB vacuum circuit breaker is controlled by the RIM BU control unit, which is a part of the RIM BB vacuum circuit breaker. The RIM BU control unit is designed as a separate module and is intended for interaction with relay protection and automation.
Specifications
Length
690 mm
Width
310 mm
Height
610 mm
Availability of built-in controls
External
Nutrition
24; 220; 230
Current type of control coil
permanent
Control coil voltage
24; 220; 230 V
Poles
Insulating, not supporting combustion
Drive
Electromagnetic
Voltage
7,2; 12
Joining
Flat terminals
Reversibility
Electrical interlocking of switching on and switching off operations
Degree of protection according to GOST 14254-96
IP 45
Control circuit current type
permanent
Type of climatic version according to GOST 15150-69
?2
Block pins
Microswitches
Number of auxiliary circuit contacts
B1/B8 2100/900 MHz
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
