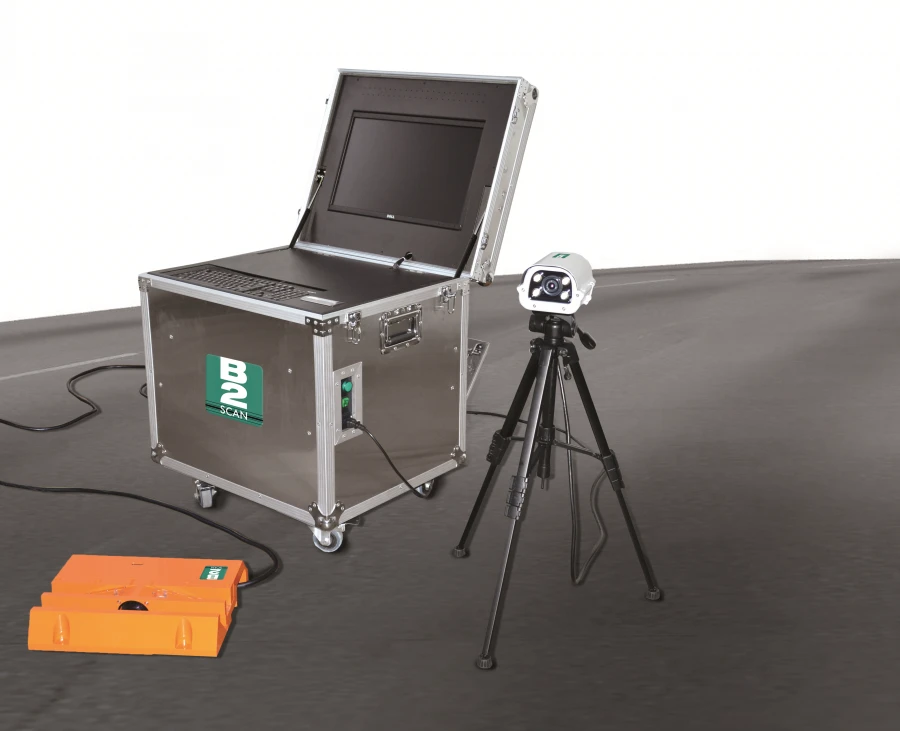

Vehicle Underbody Inspection System B2scan DD-M

Available for Import

B2scan DD-M Vehicle Underbody Inspection System for Enhanced Security

Security System Accessories

Manufacturer: BITUSCAN LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The underbody inspection system is designed to inspect the underside of a wide range of vehicles and allows you to quickly and accurately identify hidden and prohibited to import items that may be hidden under the vehicle. The product significantly reduces the time of inspection procedures and saves human resources. It is designed to provide the operator with a full, clear, colour image of the bottoms of passing vehicles in order to detect foreign objects (weapons, explosives and explosive devices, ammunition, narcotics, poisonous and potent poisonous substances, equipment for unauthorised data capture (bugs), audio-video recording devices, etc.) that are not an integral part of the vehicle and deliberately installed on the bottom, in the chassis cavities and other places.

Specifications

Overall dimensions of the operator workstation

670(L) x 550(W) x 850(H) mm

Overall dimensions of the mobile underbody scanner camera

400(L) x 345(W) x 80(H) mm

Weight of the mobile underbody scanner camera

18 kg

Housing material of the stationary vehicle underbody scanner camera

high-strength aircraft aluminum

Moisture protection class of the body of the mobile underbody scanner camera

IP68

Permissible load on the floor chamber housing

Up to 30,000kg

Infrared sections of LED illumination, quantity

2 pcs.

LED backlight luminous flux

3000 lumen

Effective viewing angle

170?

Monitor

21.5" diagonal, 1920x1080 resolution

Number of reproducible colors

16.7 million

Hard disk storage capacity

500 GB

Image Archive

Not less than 100,000 pcs.

Maximum power consumption

200 W

Operating temperature range of the stationary underbody scanner camera

-25?C ~ +60?C

Storage temperature / humidity

-40°C ~ +75°C / 5% ~ 95% non-condensing

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
