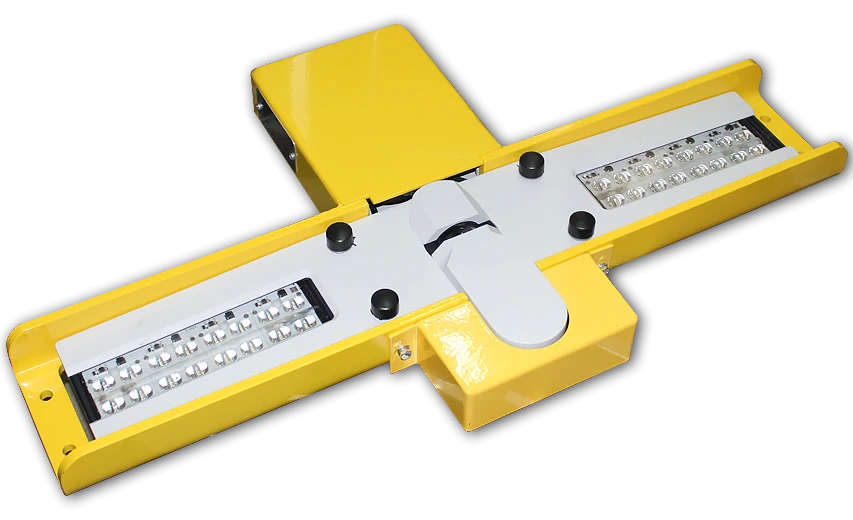

Available for ImportVehicle Undercarriage Inspection TV Module "TMKPP-Light" for Automated Detection
Manufacturer:EVS LLC
Price:Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
The module is the main element of the TV system of underbody inspection of motor vehicles "TSAD-Light", designed for automatic detection of abnormally attached (suspicious) objects. It is installed in the plane of the roadway in the checkpoint of the protected area. The system provides the ability to monitor and video record the image of the bottom of vehicles travelling on one lane in two directions.
Specifications
Power consumption together with illuminators
Not more than 90 W
Climatic version
IP67
External dimensions
Length - 406 mm Width - 140 mm, Height - 58 mm
Temperature operating range
-40° C to +40° C
Supply voltage for inbuilt illuminator
24 volts (DC)
Login and password
root
Default IP address
192.168.1.168
Video streams
Multistream transmission
Video codecs
MJPEG, H.264
Protocols
HTTP, TCP, UDP, RTSP, SMTP, DHCP, ARP, UPnP,
Network interface
100 Base-TX (RJ-45)
LAN bandwidth requirement
Not less than 100 Mbit/sec.
Power supply PoE, power class
At least 2
Viewing angle, not less than
170° longitudinal, 95° transverse
Frame rate
30 frames per second
Image resolution
1920 x1080 pixels
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
