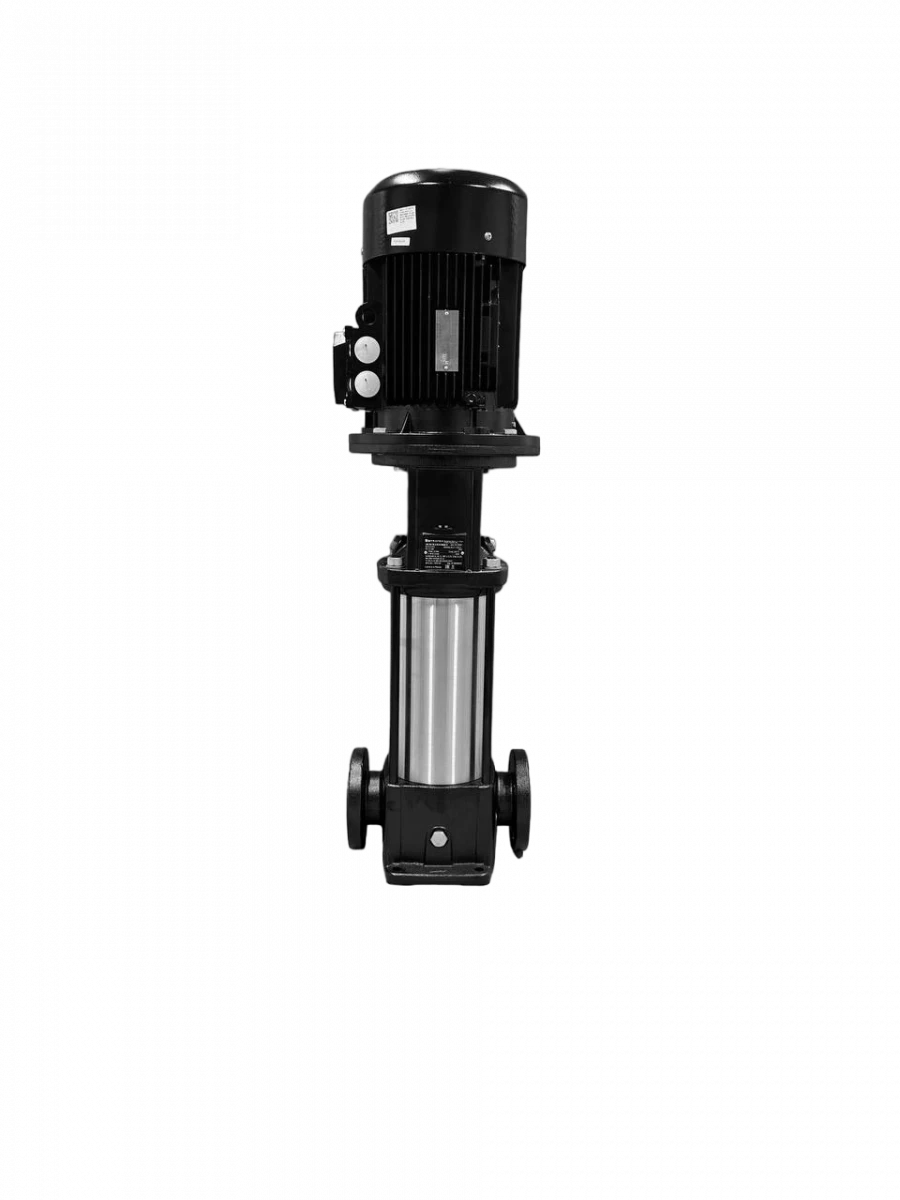

Vertical Multistage Centrifugal Pump Unit VM 10-3 for Water Supply and Pressure Boosting

Vertical multistage centrifugal pump unit (pump) VM, is designed for water supply systems, pressure boosting, firefighting and pumping of non-viscous, explosion-proof and non-flammable liquids that do not contain solid or fibrous inclusions. Pump with suction and pressure connections located at the same level ("in-line"), which enables installation in a horizontal single-pipe system. The pump head and base are cast iron, all other parts in contact with the pumped liquid are stainless steel. The cartridge shaft seal ensures high reliability, safe use and easy access for maintenance. Rotation from the electric motor to the hydraulic shaft is transmitted via a quick release coupling. The pump is equipped with an electric motor with high energy efficiency class.
